SKU: FY1.15/16TF/VA228-SKF

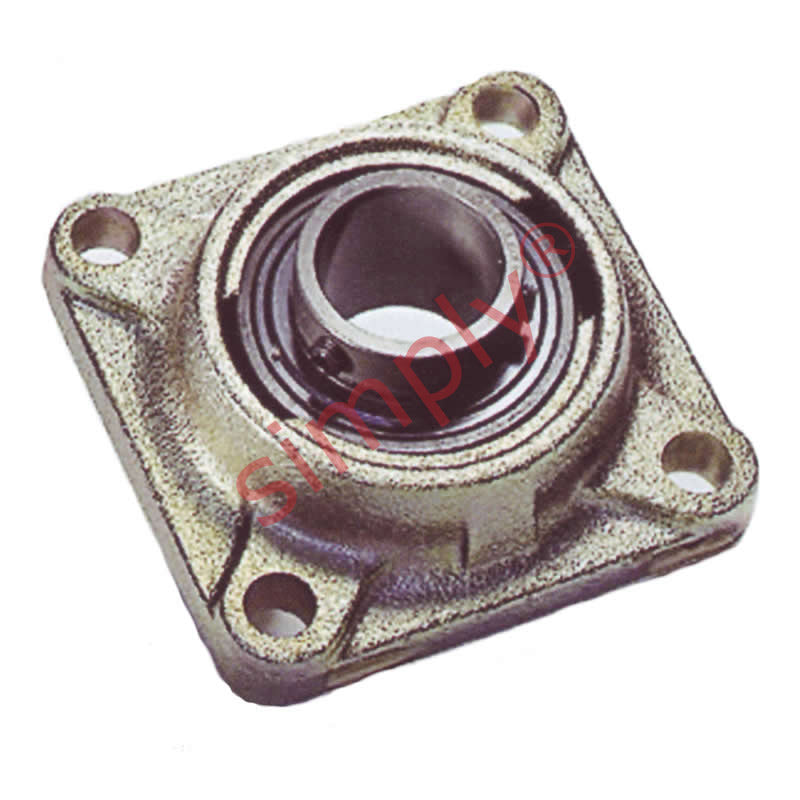

SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch
SKF FY1-15/16TF/VA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-15/16inch
Regular price
€352,20
ex VAT
Regular price
Sale price
€352,20
ex VAT
In stock
Price Break
10+
€268,24
19+
€253,17
29+
€250,15
39+
€247,14
49+
€244,12
74+
€241,11
99+
€226,04
199+
€223,03
249+
€220,01
499+
€217,00
999+
€210,97
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| J | 111mm |
| L | 143mm |
| N | 15.9mm |
| G | 14mm |
| T | 60.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.58 kg |
