SKU: FY1.11/16FM-SKF

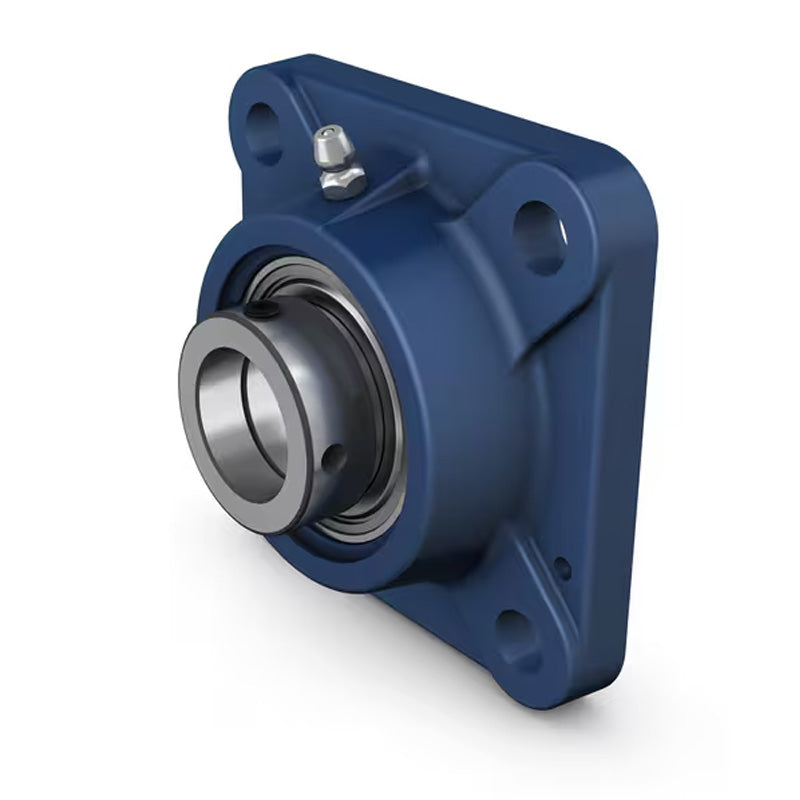

SKF FY1-11/16FM Square Cast Housing with Eccentric Collar 1-11/16 inch Insert
SKF FY1-11/16FM Square Cast Housing with Eccentric Collar 1-11/16 inch Insert
Regular price
€93,03
ex VAT
Regular price
Sale price
€93,03
ex VAT
In stock
Price Break
10+
€70,85
20+
€66,87
30+
€66,08
40+
€65,28
50+
€64,49
75+
€63,69
100+
€59,71
200+
€58,91
250+
€58,12
500+
€57,32
1000+
€55,73
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| A1 | 39mm |
| A2 | 34mm |
| B1 | 43.7mm |
| J | 105mm |
| L | 137mm |
| G | 34mm |
| s1 | 32.7mm |
| T | 56.5mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.2 kg |
| Housing | Insert |
