SKU: FY1.1/2FM-SKF

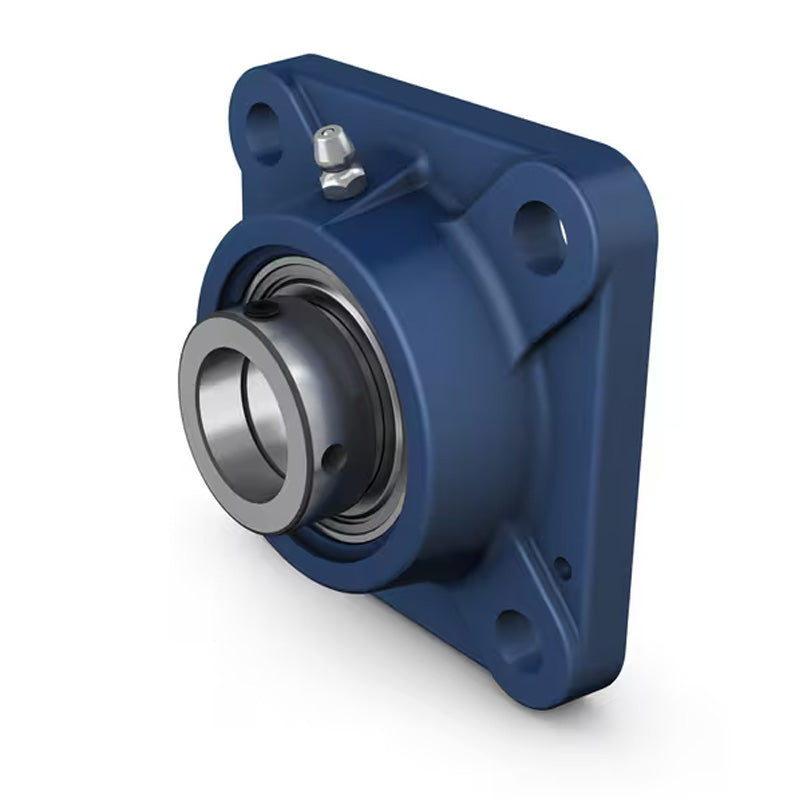

SKF FY1-1/2FM Square Cast Housing with Eccentric Collar 1-1/2 inch Insert
SKF FY1-1/2FM Square Cast Housing with Eccentric Collar 1-1/2 inch Insert
Regular price
€98,72
ex VAT
Regular price
Sale price
€98,72
ex VAT
In stock
Price Break
10+
€75,19
20+
€70,97
30+
€70,12
40+
€69,28
50+
€68,43
75+
€67,59
100+
€63,36
200+
€62,52
250+
€61,67
500+
€60,83
1000+
€59,14
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FY
- Bolt Hole Centres:
- 101.5mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 34mm |
| B1 | 43.7mm |
| J | 101.5mm |
| L | 130mm |
| G | 32mm |
| s1 | 32.7mm |
| T | 56.5mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2 kg |
| Housing | Insert |
