SKU: FC60DEC-RHP

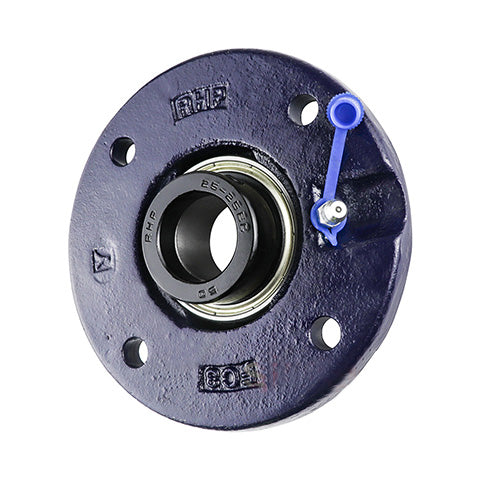

RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
Regular price
€197,41
ex VAT
Regular price
Sale price
€197,41
ex VAT
In stock
Price Break
10+
€150,35
20+
€141,90
30+
€140,22
40+
€138,53
50+
€136,84
75+
€135,15
100+
€126,70
200+
€125,01
250+
€123,32
500+
€121,63
1000+
€118,25
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- FC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 195mm |
| H | 135mm |
| J | 160mm |
| G | 16mm |
| A | 29mm |
| A3 | 45.89mm |
| A5 | 16mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
