SKU: FC25DEC-RHP

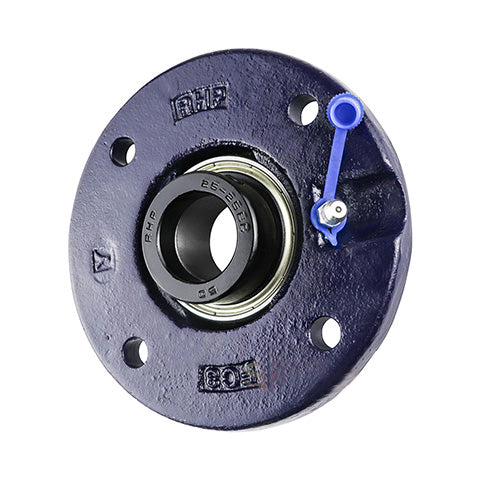

RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
€61,48
ex VAT
Regular price
Sale price
€61,48
ex VAT
In stock
Price Break
10+
€54,72
19+
€51,64
29+
€51,03
39+
€50,41
49+
€49,80
74+
€49,18
99+
€46,11
199+
€45,50
249+
€44,88
499+
€44,27
999+
€43,04
Couldn't load pickup availability
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- FC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115mm |
| H | 70mm |
| J | 90mm |
| G | 8mm |
| A | 19mm |
| A3 | 24.41mm |
| A5 | 9mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
