SKU: FBL-M05S-DUN

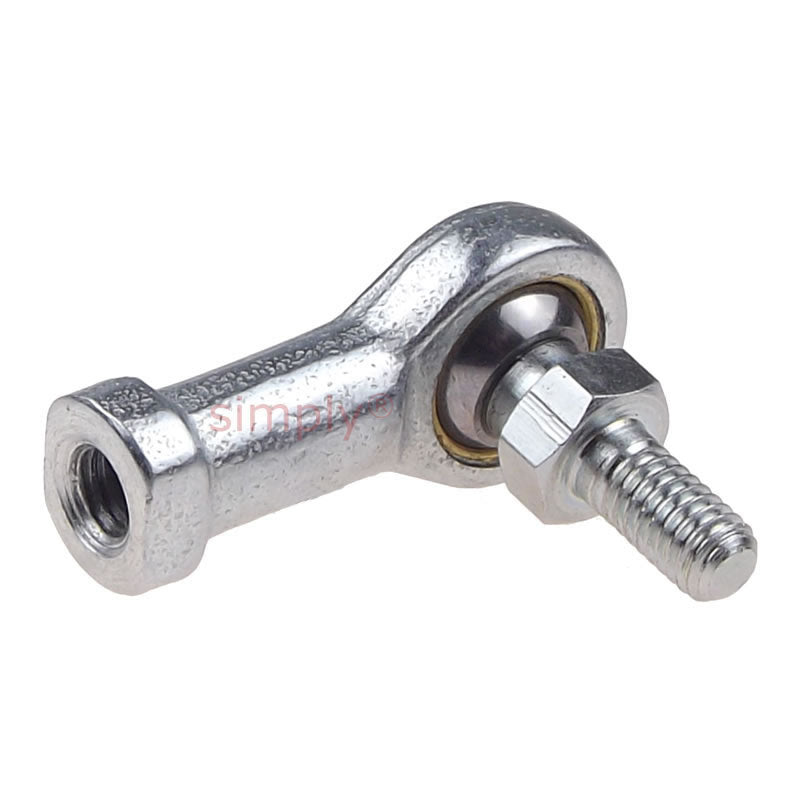

Dunlop FBL-M05S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread - Allow 7-10 Days
Dunlop FBL-M05S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread - Allow 7-10 Days
Regular price
€12,54
ex VAT
Regular price
Sale price
€12,54
ex VAT
Equivalent to: PHS5L+STUD
In stock
Price Break
10+
€11,16
19+
€10,53
29+
€10,41
39+
€10,28
49+
€10,16
74+
€10,03
99+
€9,41
199+
€9,28
249+
€9,15
499+
€9,03
999+
€8,78
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS5L+STUD
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M5 |
|---|---|
| Thread | M5x0.8 |
| A | 10mm |
| B | 10mm |
| C | 8mm |
| K | 9mm |
| Static load | 1200 N |
