SKU: FBL-07-MB

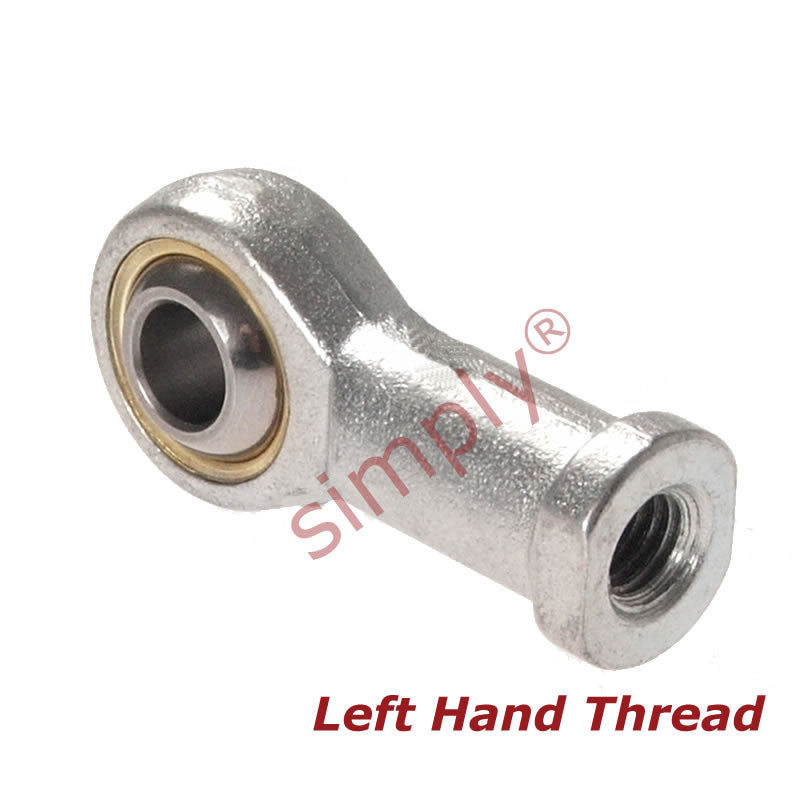

Branded FBL-07 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 7/16 UNF Thread - Allow 7-10 Days
Branded FBL-07 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 7/16 UNF Thread - Allow 7-10 Days
Regular price
€8,22
ex VAT
Regular price
Sale price
€8,22
ex VAT
In stock
Price Break
10+
€6,26
19+
€5,91
29+
€5,83
39+
€5,76
49+
€5,69
74+
€5,62
99+
€5,27
199+
€5,20
249+
€5,13
499+
€5,06
999+
€4,92
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 7/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 7/16 inch |
|---|---|
| Thread | 7/16 UNF |
| W | 0.562 inch |
| H | 0.437 inch |
| D | 1.125 inch |
| L1 | 1.812 inch |
| L2 | 1.062 inch |
| O | 0.586 inch |
| AF | 0.625 inch |
| Static load | 16360 N |
