SKU: FB-05-MB

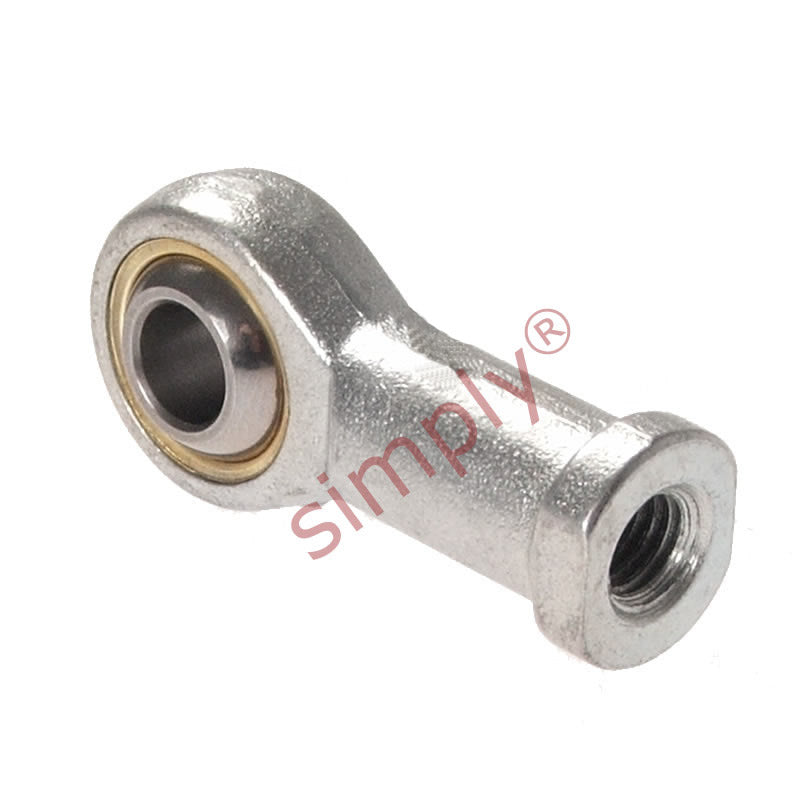

Branded FB-05 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread
Branded FB-05 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/16 UNF Thread
Regular price
€14,00
ex VAT
Regular price
Sale price
€14,00
ex VAT
In stock
Price Break
10+
€12,46
19+
€11,76
29+
€11,62
39+
€11,48
49+
€11,34
74+
€11,20
99+
€10,50
199+
€10,36
249+
€10,22
499+
€10,08
999+
€9,80
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 5/16 inch |
|---|---|
| Thread | 5/16 UNF |
| W | 0.437 inch |
| H | 0.344 inch |
| D | 0.875 inch |
| L1 | 1.375 inch |
| L2 | 0.75 inch |
| O | 0.447 inch |
| AF | 0.437 inch |
| Static load | 10450 N |
