SKU: F10-18G-EZO

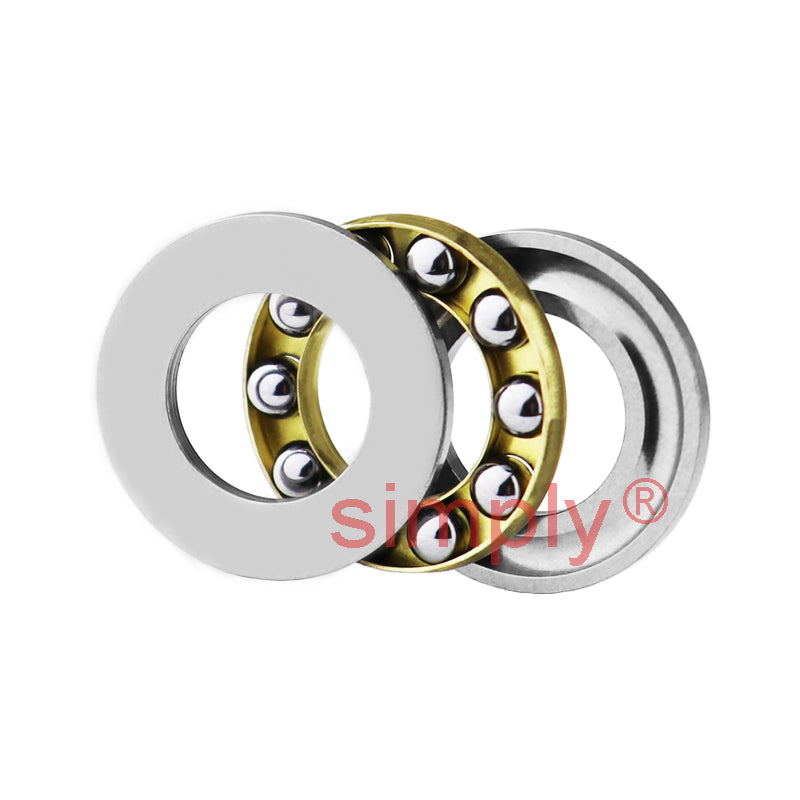

EZO F10-18G Single Thrust Ball Bearing 10x18x5.5mm
EZO F10-18G Single Thrust Ball Bearing 10x18x5.5mm
Regular price
€9,38
ex VAT
Regular price
Sale price
€9,38
ex VAT
In stock
Price Break
10+
€7,15
19+
€6,75
29+
€6,66
39+
€6,58
49+
€6,50
74+
€6,42
99+
€6,02
199+
€5,94
249+
€5,86
499+
€5,78
999+
€5,62
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EZO - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 18mm
- Width:
- 5.5mm
Technical
Technical
| d | 10mm (+0/-0.05mm) |
|---|---|
| D | 18mm (+0.005/-0.020mm) |
| H | 5.5mm (+0/-0.075mm) |
| d1 | 10.2mm (+0/-0.011mm) |
| D1 | 17.8mm (+0/-0.008mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 2.422 kN |
| Static load Co | 3.423 kN |
| Limiting speed | 14000 rpm |
| Weight | 0.006 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
