SKU: EXT308-SNR

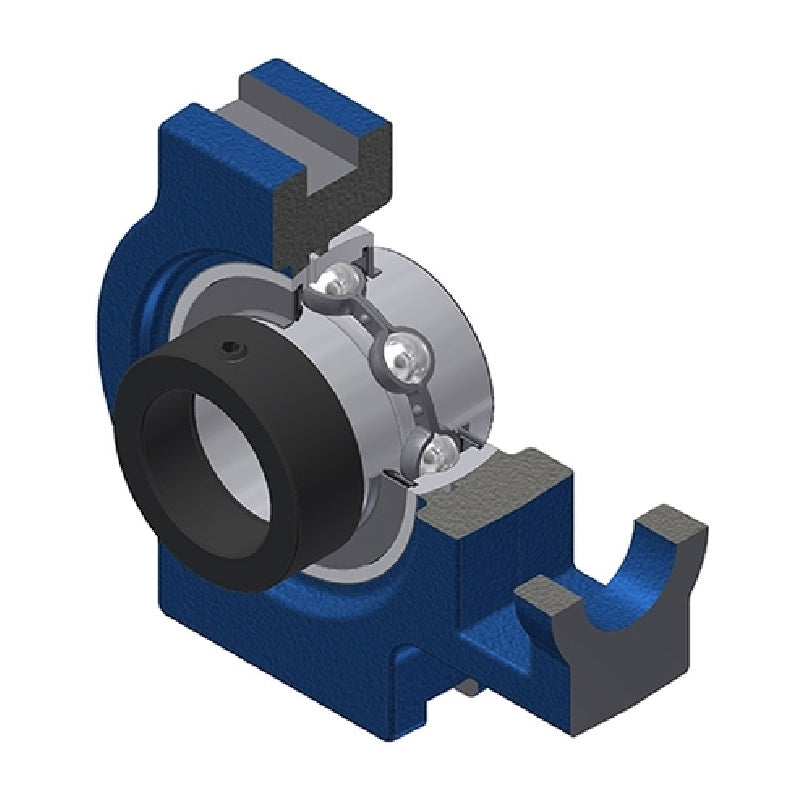

SNR EXT308 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR EXT308 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price €103,61 ex VAT
Regular price Sale price €103,61 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,77
4+ €84,23
9+ €82,45
19+ €79,79
49+ €78,02
99+ €73,59
499+ €62,06
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 50mm
A1 18mm
A2 34mm
B1 57.1mm
d1 63.5mm
H 124mm
H1 112mm
H2 83mm
L 162mm
L1 100mm
L2 19mm
L3 89mm
N 32mm
N1 22mm
N2 50mm
S 19.8mm
G M6x1
--- Load rating
Dynamic load C 40.56 kN
Static load C0 24 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 3.08 kg
