SKU: EXT212N-SNR

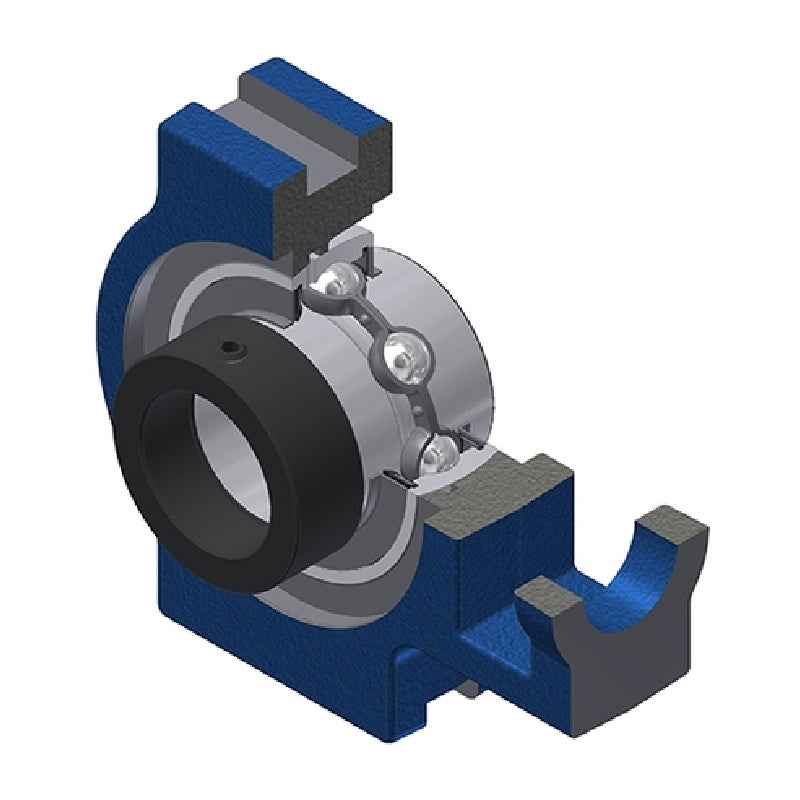

SNR EXT212N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR EXT212N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price €155,34 ex VAT
Regular price Sale price €155,34 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,60
4+ €126,28
9+ €123,62
19+ €119,64
49+ €116,98
99+ €110,33
499+ €93,05
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

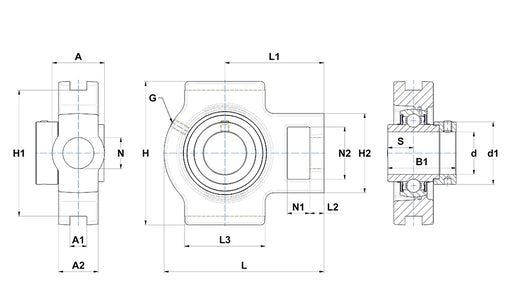

--- Dimensions
Shaft diameter d 60mm
A 64mm
A1 22mm
A2 42mm
B1 77.7mm
d1 82mm
H 146mm
H1 130mm
H2 102mm
L 194mm
L1 119mm
L2 19mm
L3 102mm
N 35mm
N1 32mm
N2 64mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 4.97 kg
