SKU: EXPE210L3-SNR

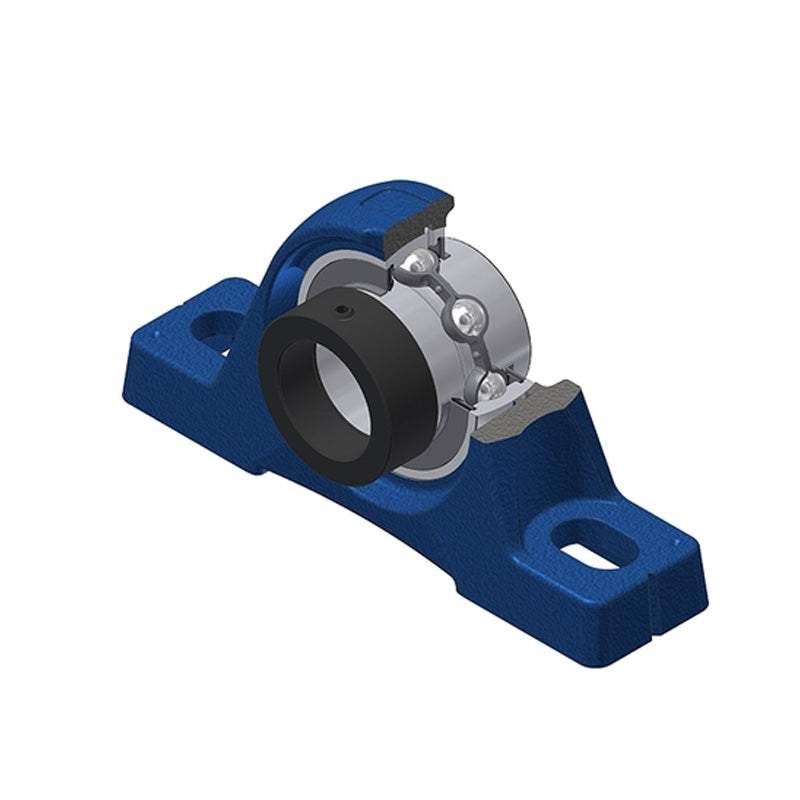

SNR EXPE210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days

SNR EXPE210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
Regular price €90,58 ex VAT
Regular price Sale price €90,58 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,73
4+ €73,63
9+ €72,08
19+ €69,76
49+ €68,21
99+ €64,33
499+ €54,26
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 49.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 24.6mm
G R1/8
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.81 kg
