SKU: EXPE207-20-SNR

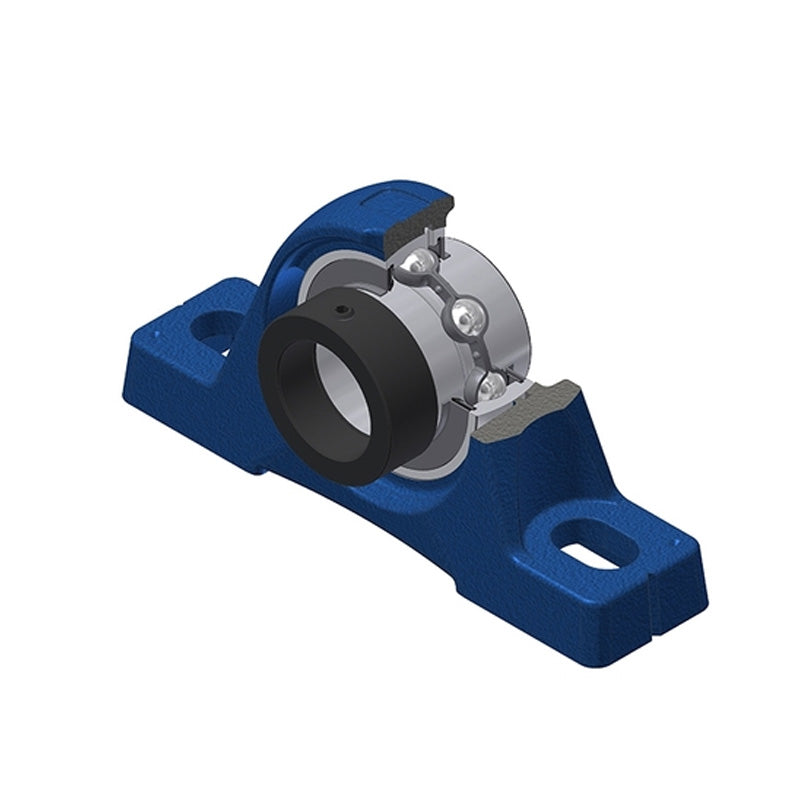

SNR EXPE207-20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE207-20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/4 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price €46,62 ex VAT
Regular price Sale price €46,62 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,49
4+ €37,90
9+ €37,10
19+ €35,90
49+ €35,10
99+ €33,11
499+ €27,92
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 1-1/4 inch
A 45mm
A1 27mm
B 37.6mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 18.8mm
G R1/8
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 8 Nm
Mass 1.76 kg
