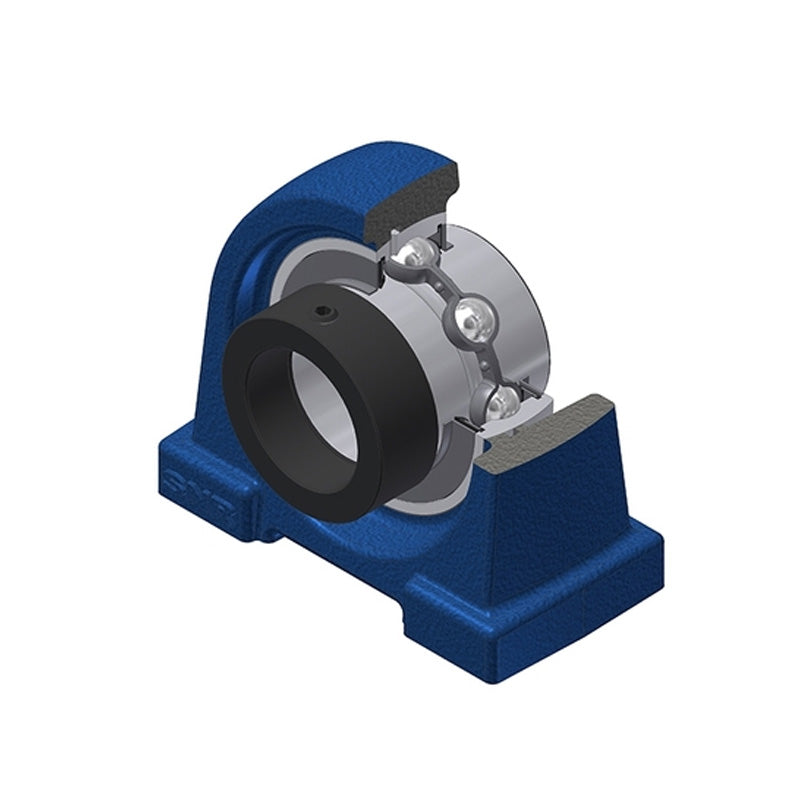

• SNR EXPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
1 1

SKU: EXPA204-SNR

SNR EXPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR EXPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
€36,23 ex VAT
€36,23 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,69
4+ €29,45
9+ €28,83
19+ €27,90
49+ €27,28
99+ €25,73
499+ €21,70
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EXPA
Bolt Hole Centres:
52mm
Technical
--- Dimensions
Shaft diameter 20mm
A 40mm
A1 22mm
B 34mm
d1 32.4mm
E 13mm
H 30.2mm
H1 11mm
H2 62mm
J 52mm
L 76mm
L1 22mm
N M10
S 17mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.62 kg
