SKU: EXPA202-SNR

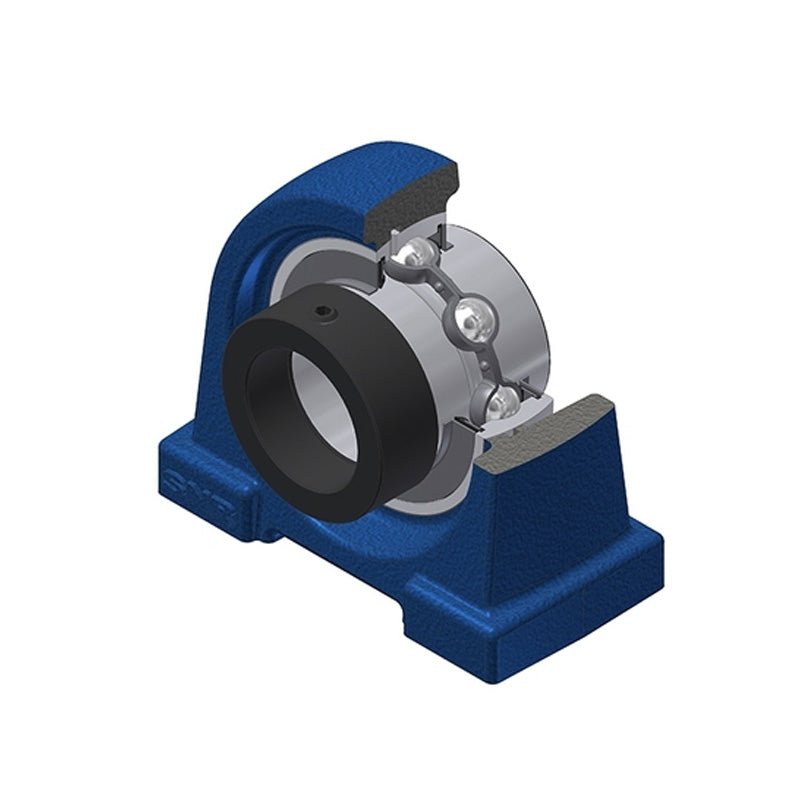

SNR EXPA202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
SNR EXPA202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
Regular price
€36,21
ex VAT
Regular price
Sale price
€36,21
ex VAT
In stock
Price Break
3+
€30,68
4+
€29,44
9+
€28,82
19+
€27,89
49+
€27,27
99+
€25,72
499+
€21,69
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- EXPA
- Bolt Hole Centres:
- 52mm
Technical
Technical

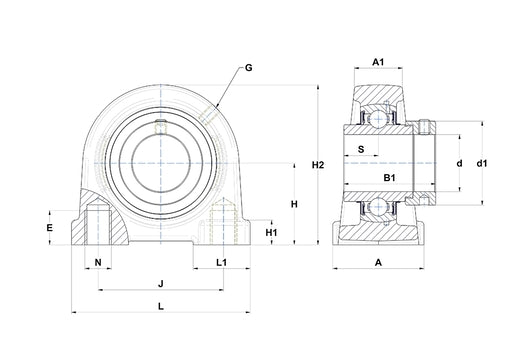

| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 40mm |
| A1 | 22mm |
| B | 34mm |
| d1 | 32.4mm |
| E | 13mm |
| H | 30.2mm |
| H1 | 11mm |
| H2 | 62mm |
| J | 52mm |
| L | 76mm |
| L1 | 22mm |
| N | M10 |
| S | 17mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.67 kg |
