SKU: EXP316-SNR

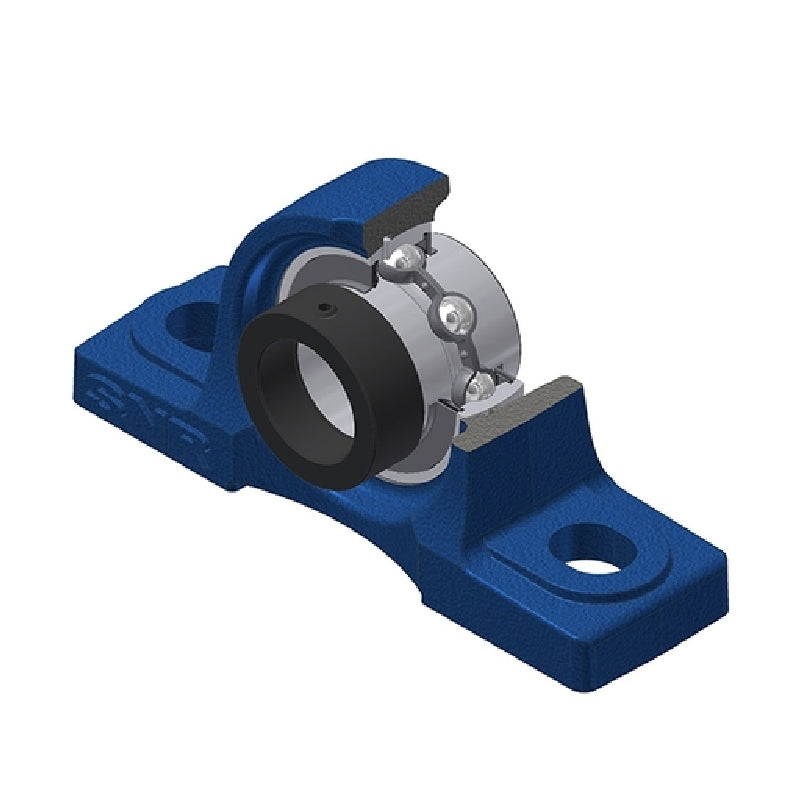

SNR EXP316 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP316 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€517,73
ex VAT
Regular price
Sale price
€517,73
ex VAT
In stock
Price Break
3+
€438,61
4+
€420,89
9+
€412,03
19+
€398,74
49+
€389,88
99+
€367,72
499+
€310,13
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXP
- Bolt Hole Centres:
- 300mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 110mm |
| A1 | 66mm |
| B | 81mm |
| d1 | 119mm |
| H | 106mm |
| H1 | 40mm |
| H2 | 210mm |
| J | 300mm |
| L | 400mm |
| L1 | 110mm |
| N | 27mm |
| N1 | 40mm |
| S | 40.5mm |
| Dz | mm |
| Z | mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 122.85 kN |
| Static load C0 | 86.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 64 Nm |
| Mass | 20 kg |
