SKU: EXF308-SNR

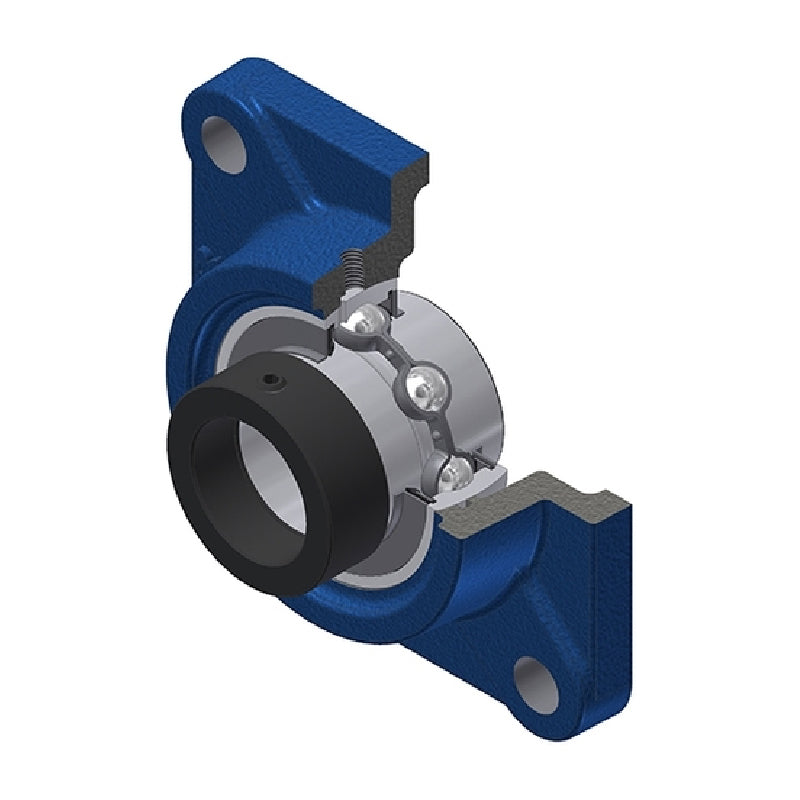

SNR EXF308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€103,57
ex VAT
Regular price
Sale price
€103,57
ex VAT
In stock
Price Break
3+
€87,74
4+
€84,20
9+
€82,43
19+
€79,77
49+
€77,99
99+
€73,56
499+
€62,04
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXF
- Bolt Hole Centres:
- 112mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 40mm |
| A1 | 17mm |
| A2 | 60.3mm |
| B | 41.3mm |
| B1 | 57.1mm |
| d1 | 63.5mm |
| e | 23mm |
| J | 112mm |
| L | 150mm |
| N | 19mm |
| S | 19.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 40.56 kN |
| Static load C0 | 24 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.81 kg |
