SKU: EXC319-SNR

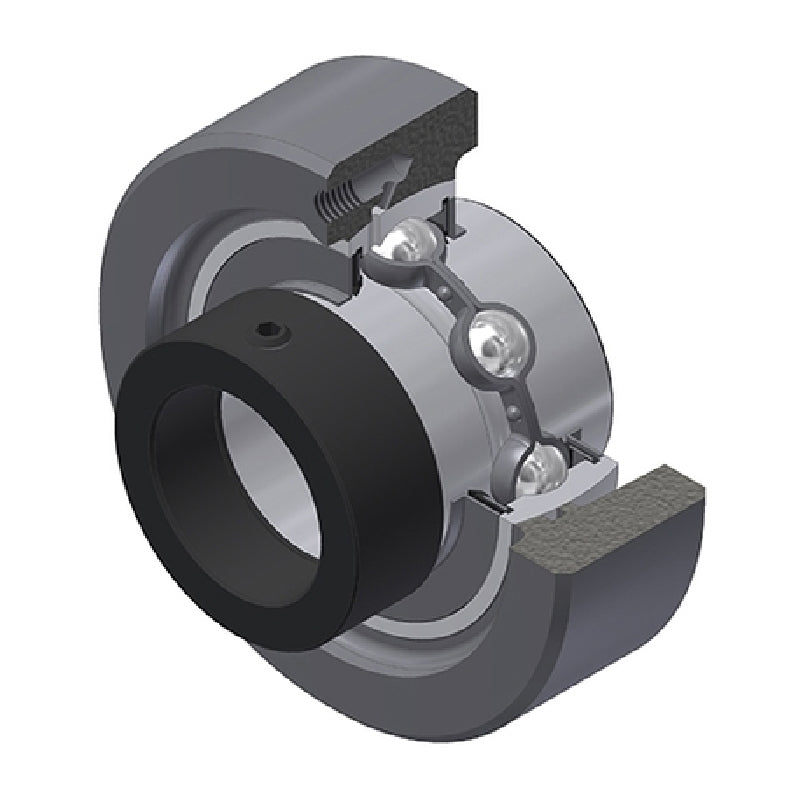

SNR EXC319 Metric Cast Iron Cartridge Unit with 95mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
SNR EXC319 Metric Cast Iron Cartridge Unit with 95mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
Regular price
€655,17
ex VAT
Regular price
Sale price
€655,17
ex VAT
In stock
Price Break
3+
€532,62
4+
€504,59
9+
€476,55
19+
€448,52
49+
€437,31
99+
€426,09
499+
€370,03
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 95mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 95mm |
| A | 72mm |
| A3 | 3mm |
| B1 | 122.3mm |
| d1 | 140mm |
| H | 240mm |
| S | 46.8mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 156 kN |
| Static load C0 | 122 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 17.4 kg |
