SKU: ESPG212-SNR
SNR ESPG212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
SNR ESPG212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price
€116,59
ex VAT
Regular price
Sale price
€116,59
ex VAT
In stock
Price Break
3+
€98,77
4+
€94,78
9+
€92,79
19+
€89,79
49+
€87,80
99+
€82,81
499+
€69,84
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|

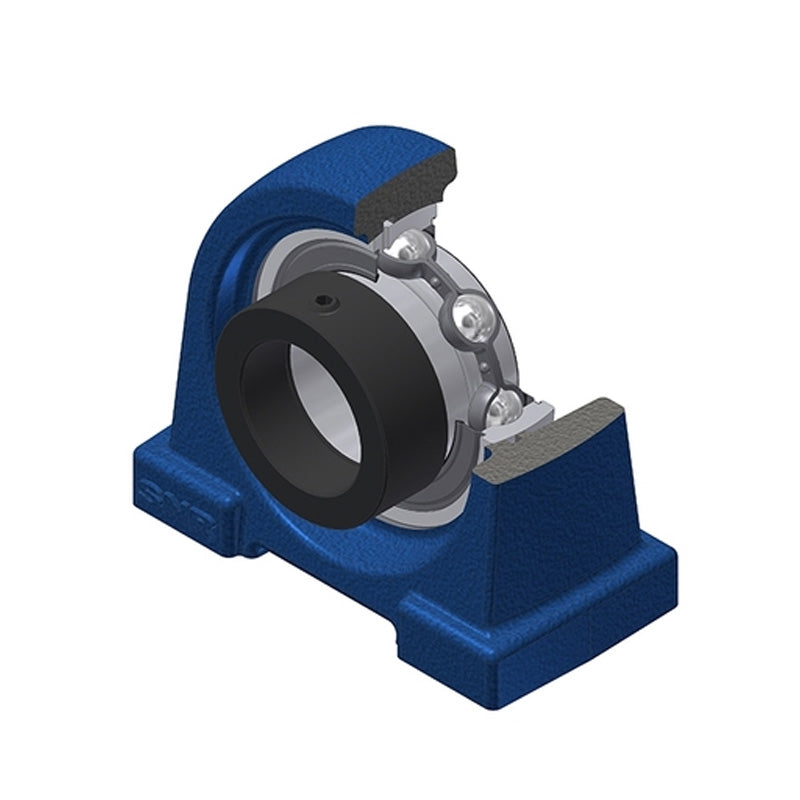

ESPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- ESPG
- Bolt Hole Centres:
- 105mm
Technical
Technical

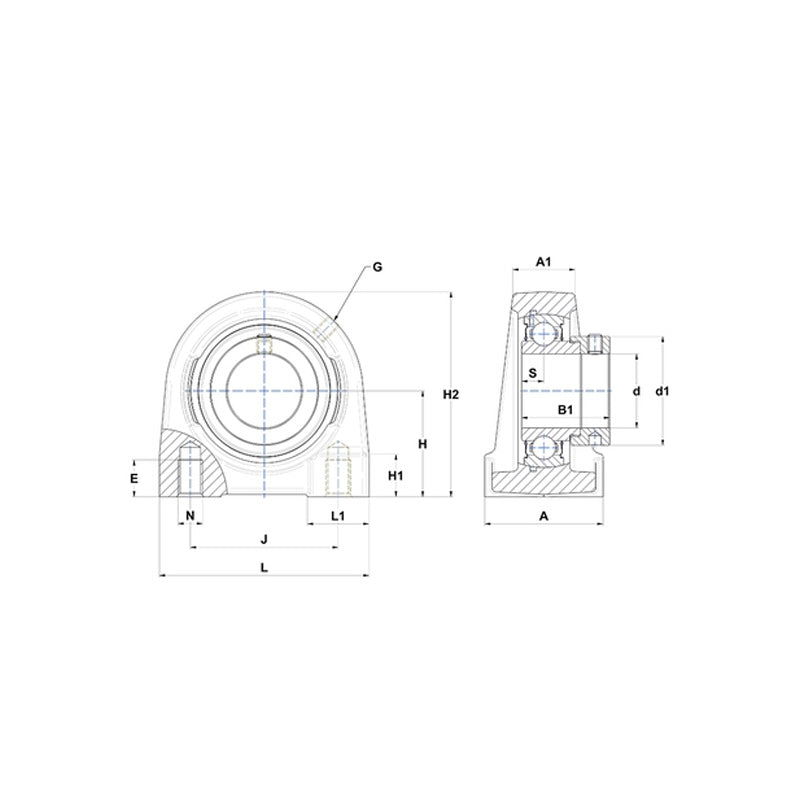

| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 70mm |
| A1 | 40mm |
| B | 33.4mm |
| d1 | 82mm |
| E | 25mm |
| H | 69.8mm |
| H1 | 25mm |
| H2 | 138mm |
| J | 105mm |
| L | 150mm |
| L1 | 50mm |
| N | M16 |
| S | 12mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.3 kg |
