SKU: ESPG204N-SNR
SNR ESPG204N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
SNR ESPG204N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
Regular price
€77,66
ex VAT
Regular price
Sale price
€77,66
ex VAT
In stock
Price Break
3+
€65,80
4+
€63,14
9+
€61,81
19+
€59,81
49+
€58,48
99+
€55,16
499+
€46,52
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|

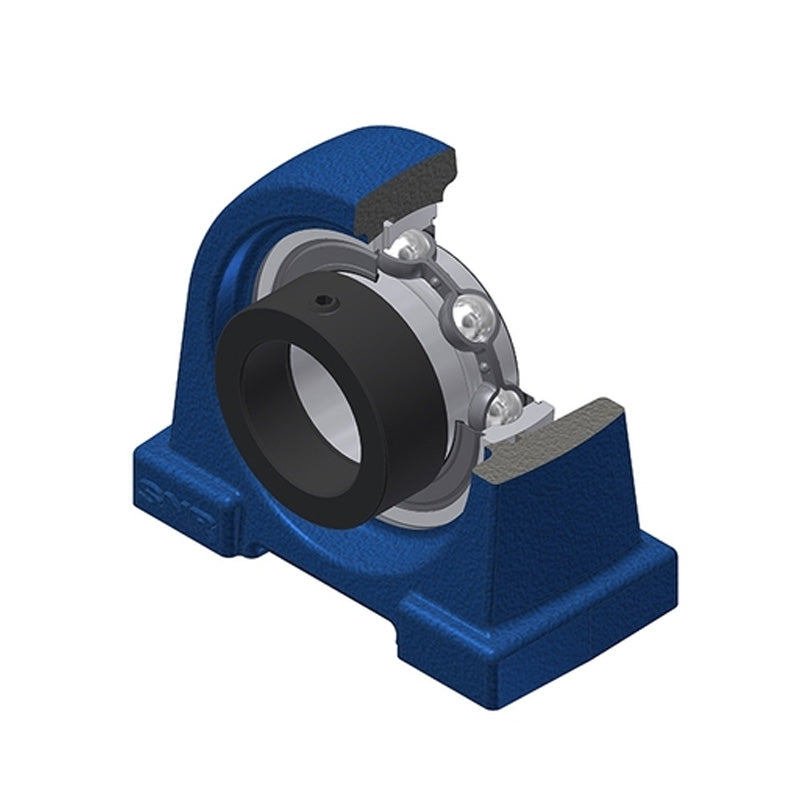

ESPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESPG
- Bolt Hole Centres:
- 49mm
Technical
Technical

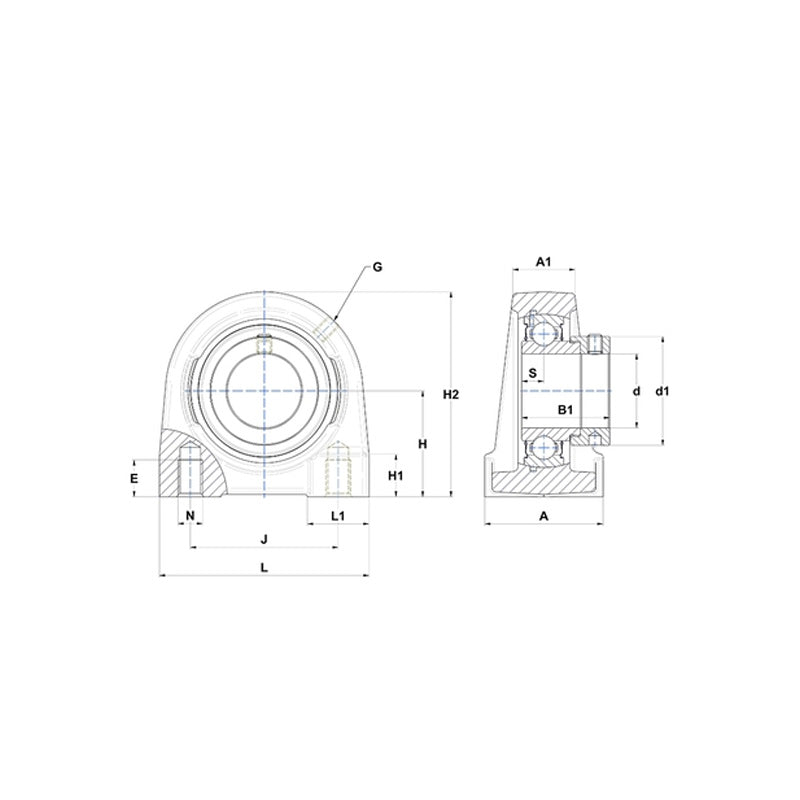

| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 38mm |
| A1 | 20mm |
| B | 21.4mm |
| d1 | 32.4mm |
| E | 16mm |
| H | 33.3mm |
| H1 | 14mm |
| H2 | 64mm |
| J | 49mm |
| L | 70mm |
| L1 | 21mm |
| N | M8 |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.55 kg |
