SKU: ESPE210T04-SNR

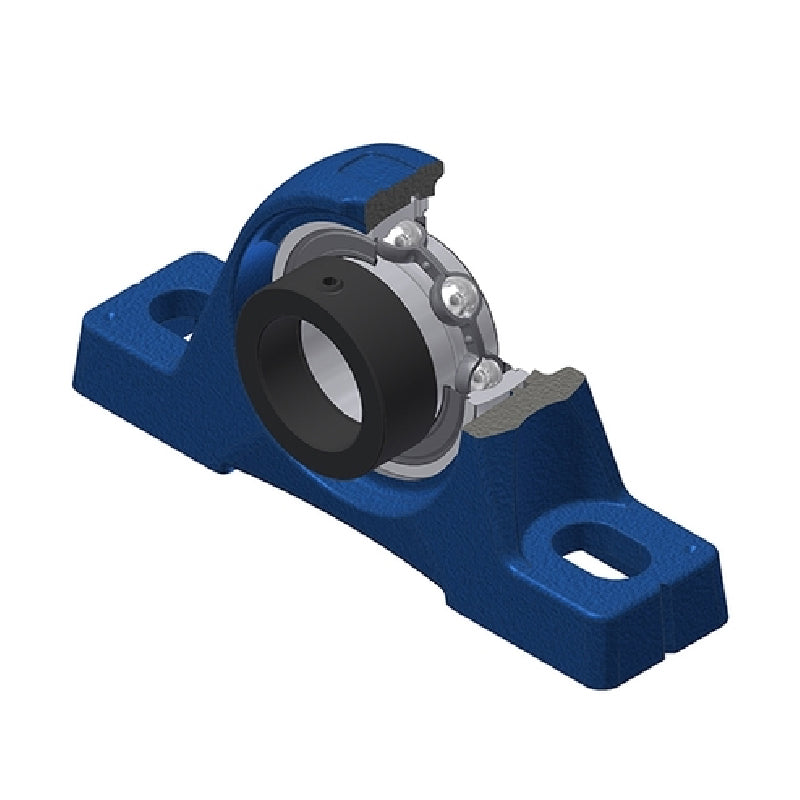

SNR ESPE210T04 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days

SNR ESPE210T04 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days
Regular price €77,69 ex VAT
Regular price Sale price €77,69 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,82
4+ €63,16
9+ €61,83
19+ €59,83
49+ €58,50
99+ €55,18
499+ €46,54
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 11mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -40°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.6 kg
