SKU: ESPA208-24-SNR
SNR ESPA208-24 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing with Eccentric Collar Insert 1-1/2 inch Bore - Allow 2-3 Days
SNR ESPA208-24 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing with Eccentric Collar Insert 1-1/2 inch Bore - Allow 2-3 Days
Regular price
€64,67
ex VAT
Regular price
Sale price
€64,67
ex VAT
In stock
Price Break
3+
€54,79
4+
€52,57
9+
€51,47
19+
€49,81
49+
€48,70
99+
€45,93
499+
€38,74
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|

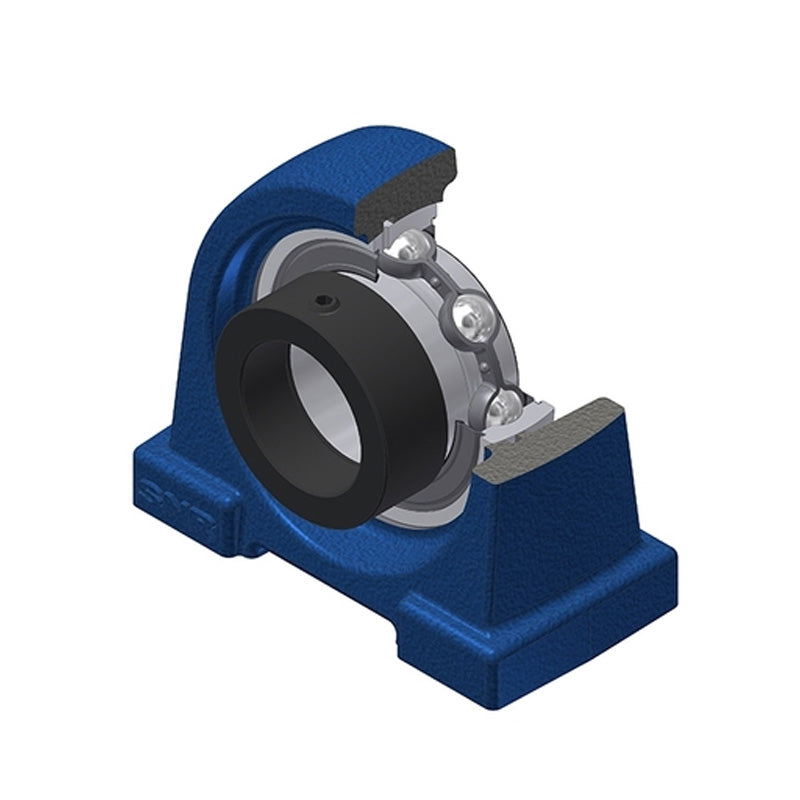

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- ESPA
- Bolt Hole Centres:
- 84mm
Technical
Technical

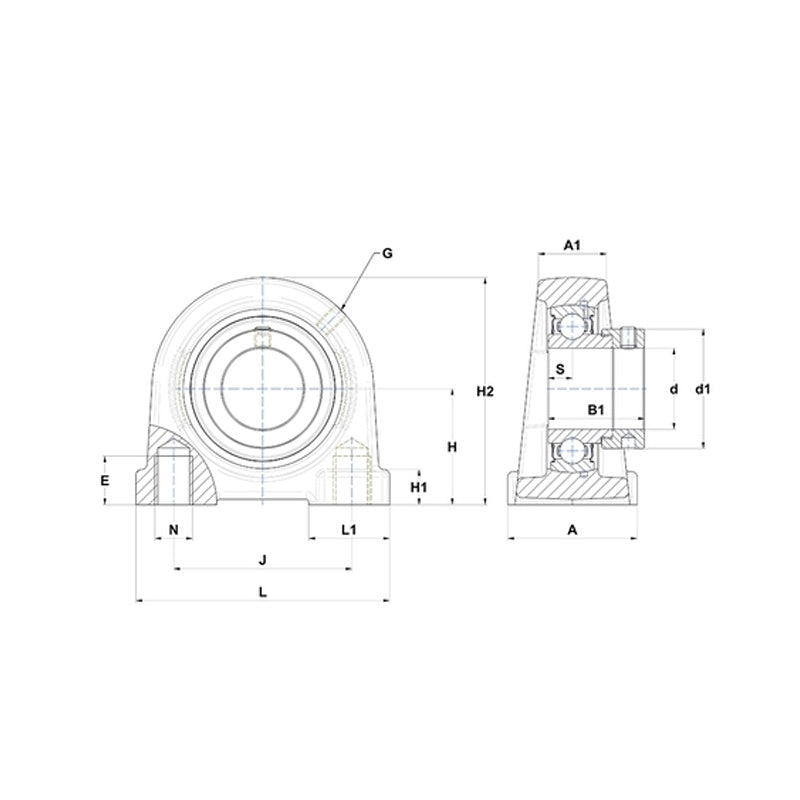

| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/2 inch |
| A | 54mm |
| A1 | 28mm |
| B | 30.2mm |
| d1 | 58mm |
| E | 20mm |
| H | 49.2mm |
| H1 | 13mm |
| H2 | 100mm |
| J | 84mm |
| L | 116mm |
| L1 | 32mm |
| N | M14 |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.78 kg |
