SKU: ESFTE202-SNR

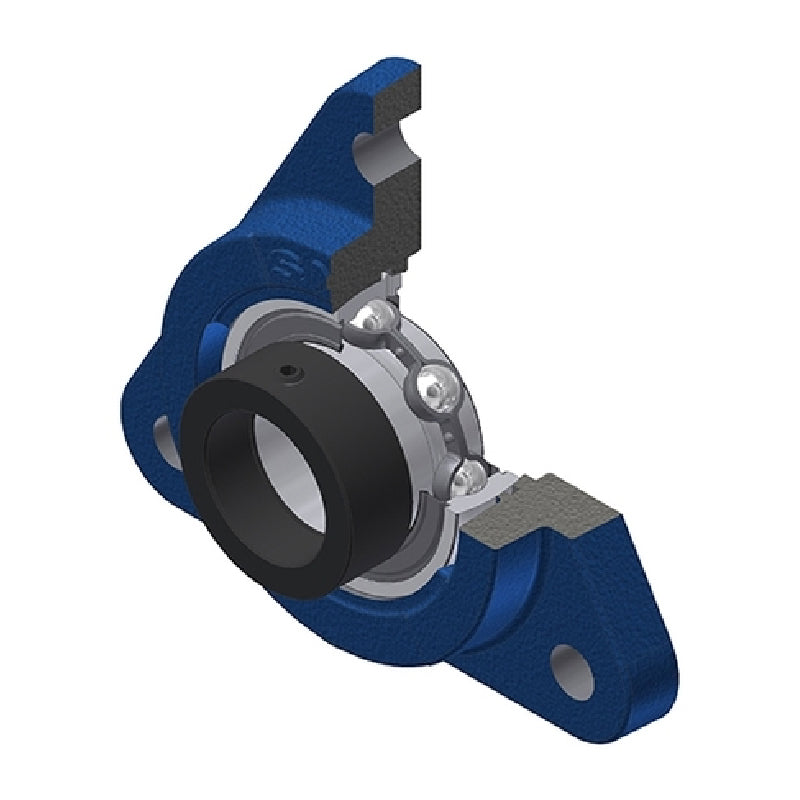

SNR ESFTE202 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
SNR ESFTE202 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
Regular price
€31,06
ex VAT
Regular price
Sale price
€31,06
ex VAT
In stock
Price Break
3+
€26,31
4+
€25,25
9+
€24,72
19+
€23,92
49+
€23,39
99+
€22,06
499+
€18,61
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESFTE
- Bolt Hole Centres:
- 76.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 20mm |
| A1 | 11mm |
| A2 | 32.1mm |
| B | 19.1mm |
| B1 | 28.6mm |
| d1 | 27.2mm |
| e | 10mm |
| H | 81mm |
| H1 | 31mm |
| J | 76.1mm |
| N | 11.5mm |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.43 kg |
