SKU: E50-KLL-INA

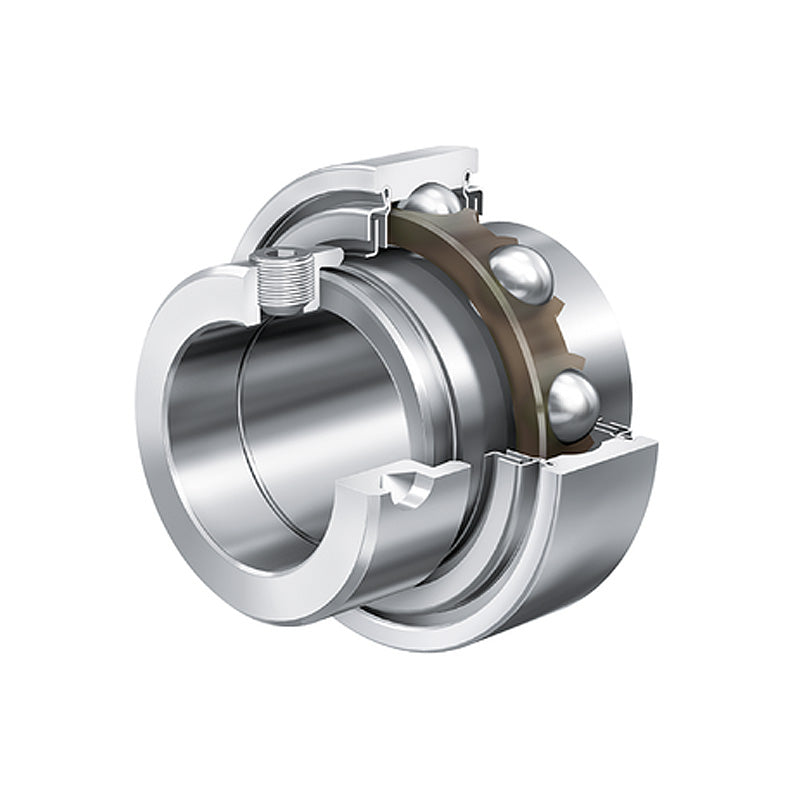

INA E50XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 50x90x62.8mm
INA E50XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 50x90x62.8mm
Regular price
€91,70
ex VAT
Regular price
Sale price
€91,70
ex VAT
In stock
Price Break
3+
€69,84
5+
€65,91
10+
€65,13
15+
€64,35
20+
€63,56
30+
€62,78
40+
€58,85
50+
€58,07
60+
€57,28
75+
€56,50
100+
€54,93
Description
Description
|

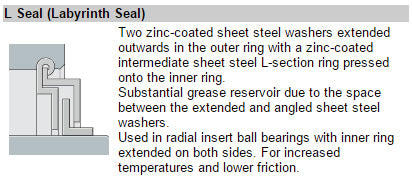

INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 62.8mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B1 | 62.8mm |
| B | 49.2mm |
| C | 22mm |
| C2 | 26.4mm |
| D1 | 77.3mm |
| d1 | 62.8mm |
| d3 max | 69mm |
| S | 24.6mm |
| W | 5mm |
| Dynamic load Cr | 35000 N |
| Static load C0r | 23200 N |
| Weight | 1 kg |
