SKU: E45-KRR-INA

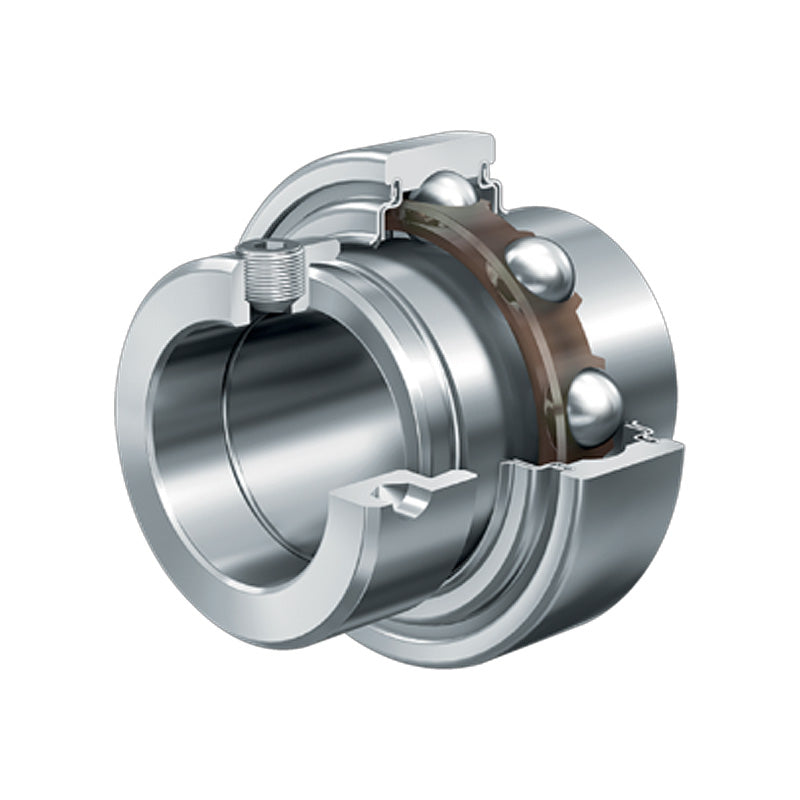

INA E45XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 45x85x56.5mm
INA E45XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 45x85x56.5mm
Regular price
€66,40
ex VAT
Regular price
Sale price
€66,40
ex VAT
In stock
Price Break
3+
€50,57
5+
€47,73
10+
€47,16
15+
€46,59
20+
€46,02
30+
€45,46
40+
€42,62
50+
€42,05
60+
€41,48
75+
€40,91
100+
€39,77
Description
Description
|
INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 56.5mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 22mm |
| C2 | 26.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| d3 max | 63mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.85 kg |
