SKU: E40-KRR-B-INA

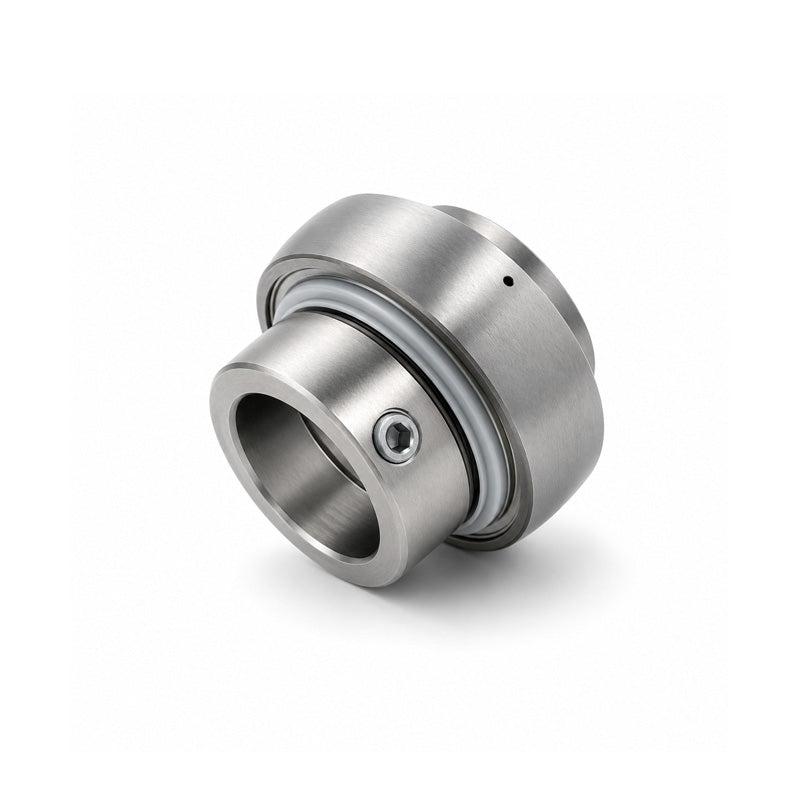

INA E40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 40x80x56.5mm
INA E40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 40x80x56.5mm
Regular price
€50,66
ex VAT
Regular price
Sale price
€50,66
ex VAT
In stock
Price Break
3+
€38,58
5+
€36,41
10+
€35,98
15+
€35,55
20+
€35,11
30+
€34,68
40+
€32,51
50+
€32,08
60+
€31,65
75+
€31,21
100+
€30,35
Description
Description
|
INA E..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 23.5mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.73 kg |
