SKU: E35-KRR-INA

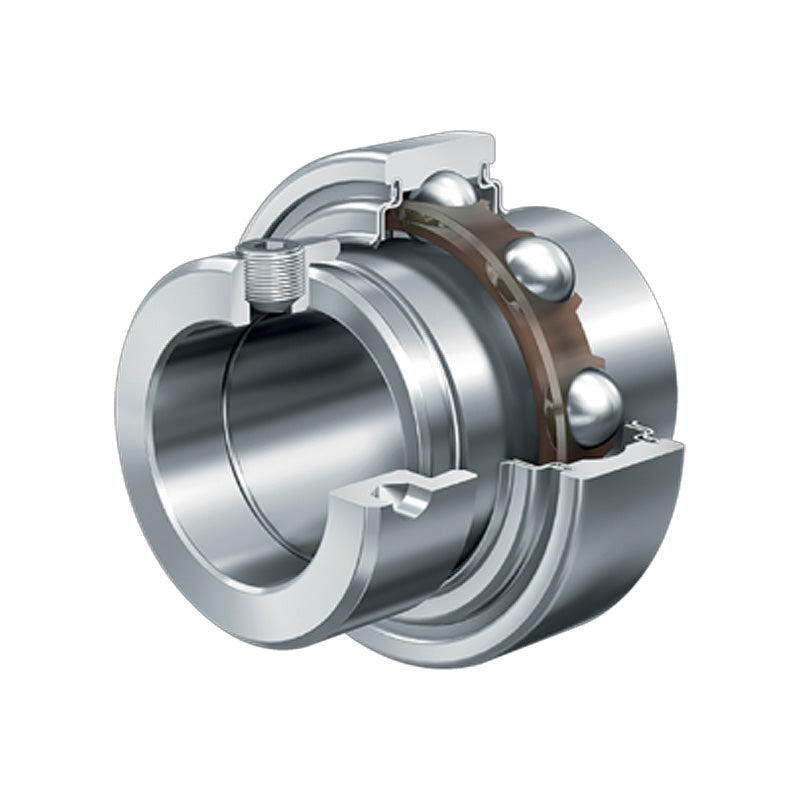

INA E35XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 35x72x51.3mm
INA E35XLKRR Metric Parallel Outer Bearing Insert with R Seals and Eccentric Collar 35x72x51.3mm
Regular price
€47,29
ex VAT
Regular price
Sale price
€47,29
ex VAT
In stock
Price Break
10+
€42,09
19+
€39,72
29+
€39,25
39+
€38,78
49+
€38,30
74+
€37,83
99+
€35,47
199+
€34,99
249+
€34,52
499+
€34,05
999+
€33,10
Couldn't load pickup availability
Description
Description
|

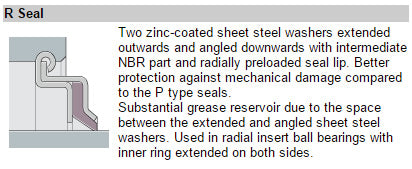

INA E..-KRR Series Inserts: Bearing insert with parallel outer race, R seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 51.3mm
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 51.3mm |
| B | 37.7mm |
| C | 19mm |
| C2 | 21.7mm |
| D1 | 60.3mm |
| d1 | 46.8mm |
| d3 max | 51mm |
| S | 18.8mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.57 kg |
