SKU: E30-KRR-B-INA

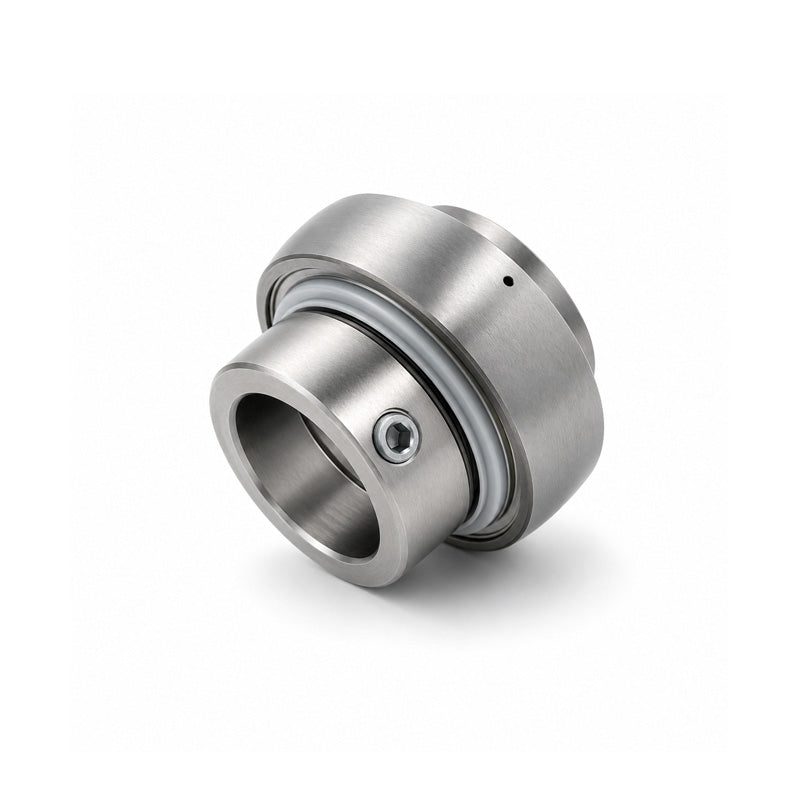

INA E30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 30x62x48.5mm
INA E30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 30x62x48.5mm
Regular price
€35,99
ex VAT
Regular price
Sale price
€35,99
ex VAT
In stock
Price Break
3+
€27,41
5+
€25,87
10+
€25,56
15+
€25,26
20+
€24,95
30+
€24,64
40+
€23,10
50+
€22,79
60+
€22,48
75+
€22,18
100+
€21,56
Description
Description
|
INA E..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 48.5mm
Technical
Technical
| d | 30mm |
|---|---|
| Dsp | 62mm |
| B1 | 48.5mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 20.7mm |
| D1 | 52mm |
| d1 | 40.2mm |
| d3 max | 44mm |
| S | 18.3mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.39 kg |
