SKU: E25-KRR-B-INA

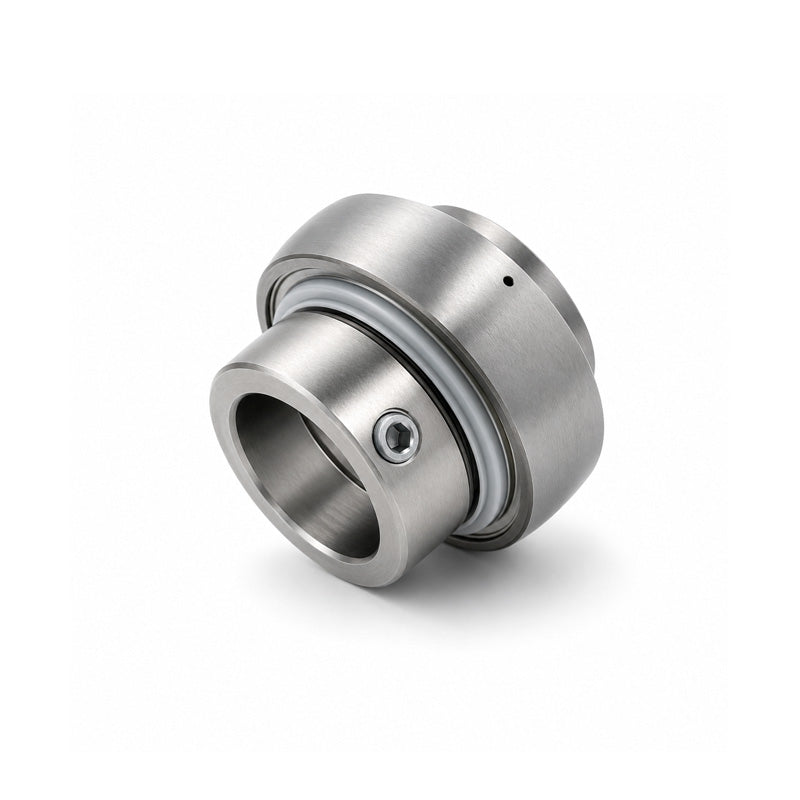

INA E25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 25x52x44.5mm
INA E25XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 25x52x44.5mm
Regular price
€29,40
ex VAT
Regular price
Sale price
€29,40
ex VAT
In stock
Price Break
3+
€22,39
5+
€21,13
10+
€20,88
15+
€20,63
20+
€20,38
30+
€20,13
40+
€18,87
50+
€18,62
60+
€18,37
75+
€18,12
100+
€17,61
Description
Description
|
INA E..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 44.5mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 44.5mm |
| B | 34.9mm |
| C | 15mm |
| C2 | 16.7mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| d3 max | 37.5mm |
| S | 17.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.25 kg |
