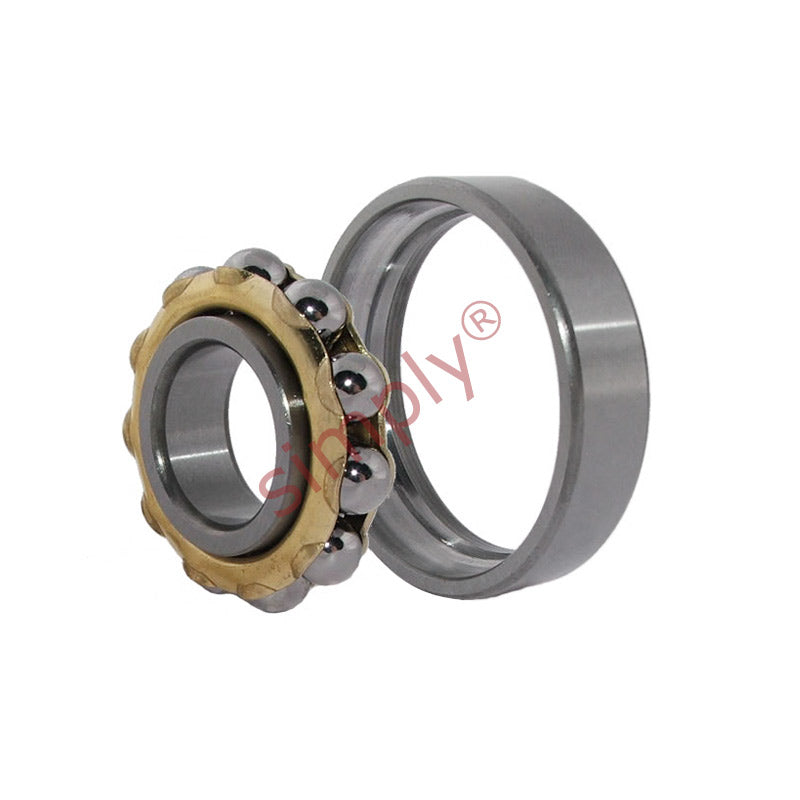

E20 Magneto Bearing 20x47x12mm

Magneto Bearings: The inner groove of magneto bearings is a little shallower than that of deep groove bearings, the outer ring has a shoulder on only one side and may be removed. This can be advantageous for mounting. In general, two bearings are used as a pair. Magneto bearings are small bearings with a bore diameter of 4 to 30 mm and are generally used for small magnetos, gyroscopes and instruments. Please note this may be supplied with a black plastic/polyamide cage as opposed to steel/brass.
Benefits: Axial loading, ease of mounting and assembly
