DRY-4L510K 4L Section 13x8mm Blue Cotton Dry Cover Kevlar Re-inforced Mower Wrapped V-Belt

4L Section Mower Belts: Wrapped V-Belts with a coloured dry cotton cover, the belts have a large diameter of ARAMID (Kevlar) cords, impregnated with special compound which eliminates the need for re-tensioning and offers
High Tensile Strength along with non-extensibility and a high resistance to shock loads.
The belts are covered with a double wrap of special fabric to ensure high resistance to wear and tear and reduced slippage while clutching.
Manufactured as part of an extensive range of specially constructed belts tested and approved to suit many OEM specific applications with attractive aesthetic qualities - coloured "dry cotton" - type wrap is synonymous with the belts used by major quality OEM machine manufacturers.
Belt Characteristics: Able to withstand a high level of reverse flexing - usually associated with "serpentine" drives, and external idler placement - High resistance to oil, heat and cracking.
Also available in standard sections - also 3L and 5L sections.

Equivalent: Ref LGSC7506: Suitable for Manufacturers Scag Machine Applications: Pump Drive - Tiger Cub OEM Ref: 482009 DC4L510K DRYB4L510K DRY4L510K XDV48X510

Brand / Quality:

Major Brand - High Quality

Belt Number:

DRY-4L510K

Outside Length Approx:

51 inch = 1295mm

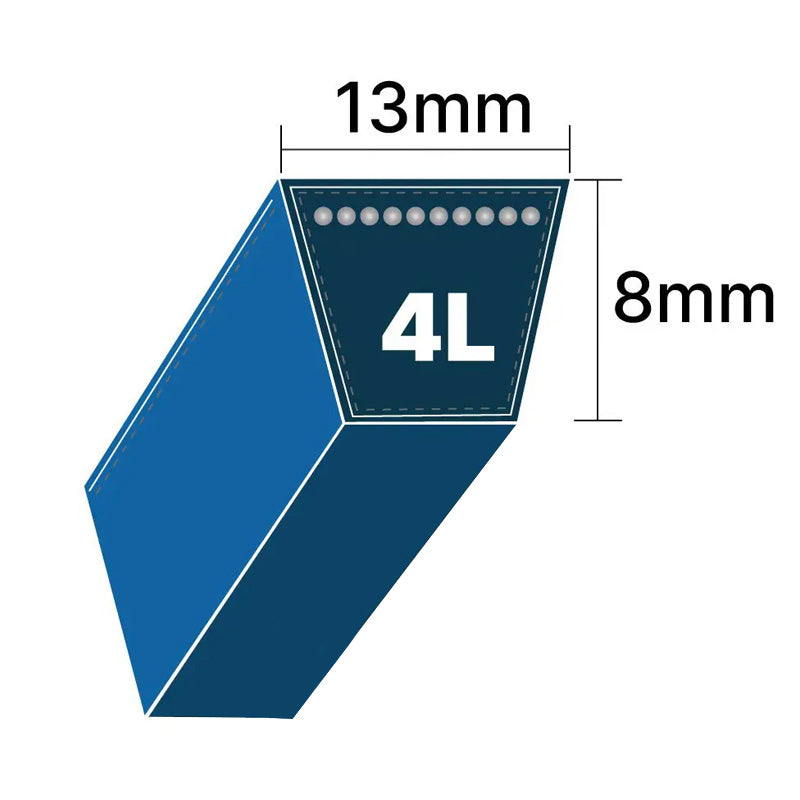

Belt Width Approx:

13mm

Belt Depth Approx:

8mm
