DRY-3L235K 3L Section 10x6mm Blue Cotton Dry Cover Kevlar Re-inforced Mower Wrapped V-Belt

3L Section Mower Belts: Wrapped V-Belts with a coloured dry cotton cover, the belts have a large diameter of ARAMID (Kevlar) cords, impregnated with special compound which eliminates the need for re-tensioning and offers
High Tensile Strength along with non-extensibility and a high resistance to shock loads.
The belts are covered with a double wrap of special fabric to ensure high resistance to wear and tear and reduced slippage while clutching.
Manufactured as part of an extensive range of specially constructed belts tested and approved to suit many OEM specific applications with attractive aesthetic qualities - coloured "dry cotton" - type wrap is synonymous with the belts used by major quality OEM machine manufacturers.
Belt Characteristics: Able to withstand a high level of reverse flexing - usually associated with "serpentine" drives, and external idler placement - High resistance to oil, heat and cracking.
Also available in standard sections - 4L and 5L.

Equivalent: Ref LGAS1204: Suitable for Manufacturers AS-Motor AS Motor Machine Applications: 53B1, 53B1R, 46B1 OEM Ref: 4283 DC3L235K DRYB3L235K DRY3L235K

Brand / Quality:

Pix - High Quality

Belt Number:

DRY-3L235K

Outside Length Approx:

23.5 inch = 597mm

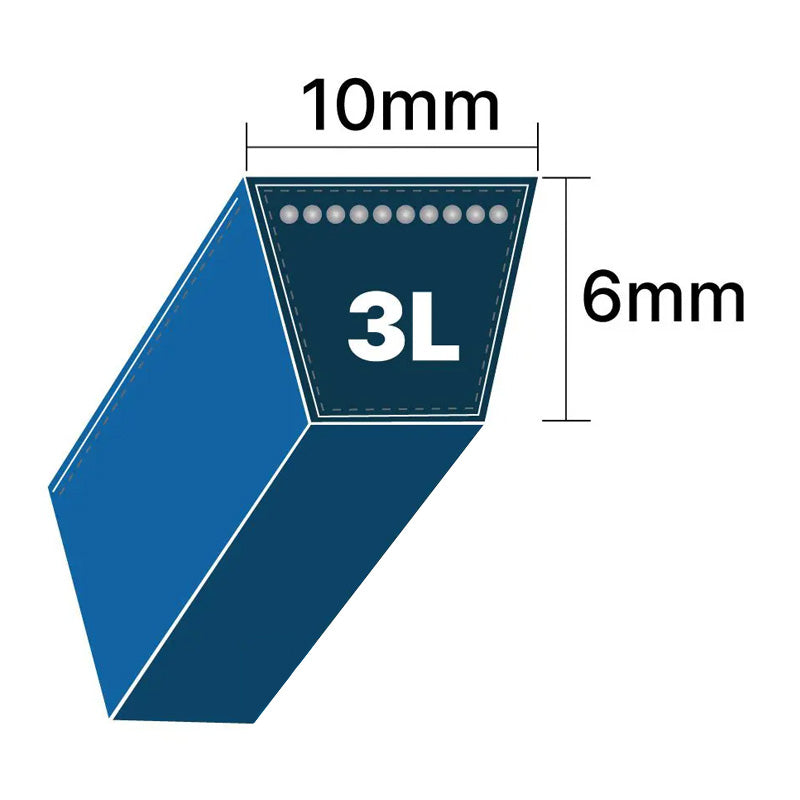

Belt Width Approx:

10mm

Belt Depth Approx:

6mm
