SKU: DNF155/12A-RHP

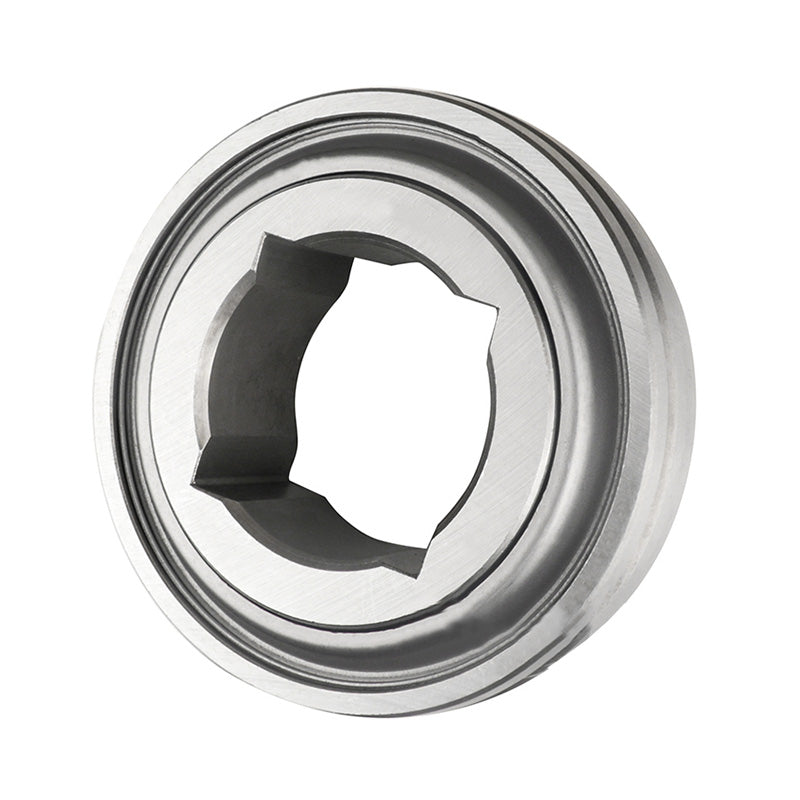

RHP DNF155/12A Spherical Outer Square 40mm Bore Bearing 100mm Outside Diameter
RHP DNF155/12A Spherical Outer Square 40mm Bore Bearing 100mm Outside Diameter
Regular price
€145,27
ex VAT
Regular price
Sale price
€145,27
ex VAT
In stock
Price Break
10+
€129,29
19+
€122,03
29+
€120,57
39+
€119,12
49+
€117,67
74+
€116,22
99+
€108,95
199+
€107,50
249+
€106,05
499+
€104,59
999+
€101,69
Couldn't load pickup availability
Description
Description
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
- A great working depth places the bearings directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage
- Shock load protection due to high grade ductile iron housing
- Exclusive patented sealing system eliminates the need for daily relubrication
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 100mm
- Style:
- DNF
Technical
Technical
| Bore | 40mm |
|---|---|
| d Nominal | 40.77mm |
| Tolerance Nominal to Minus | 0.2 |
| D Nominal | 100mm |
| Tolerance Nominal to Minus | 0.013 |
| B | 33.34mm |
| C | 25mm |
| C2 | -mm |
| r | -mm |
| Dynamic load Cr | 33400 N |
| Static load Cor | 29200 N |
| Rec max speed | 500 rpm |
| Weight | 1.19 kg |
