SKU: DKR-06-10-FLEX

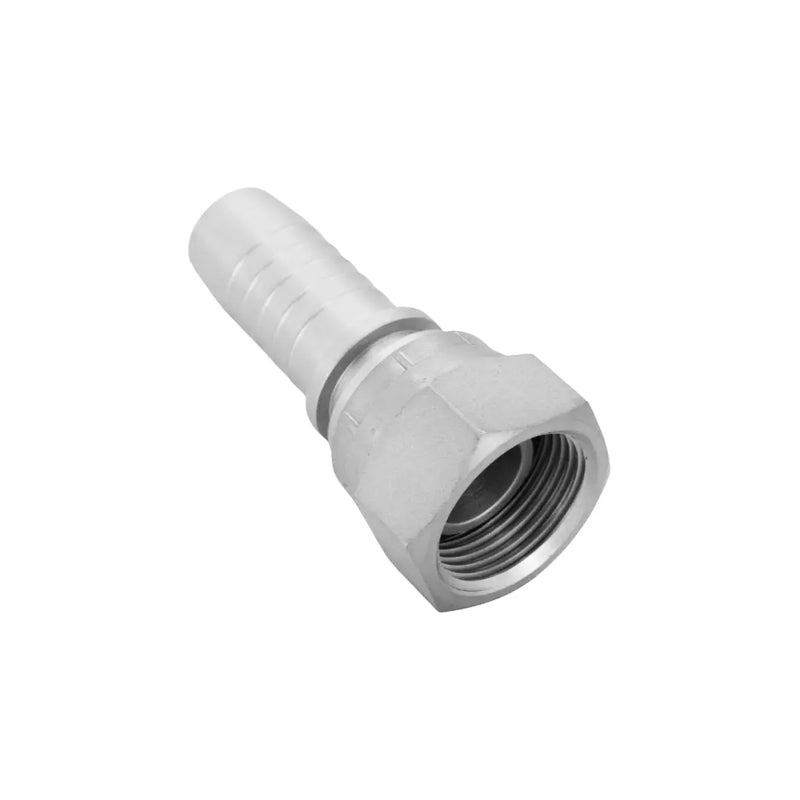

FLEXEQUIP/VOSS 3/8 inch BSP Female Two Piece Hose Fitting with 60 Degree Cone and 22mm Slip Nut - Allow 2-3 Days
In stock
Price Break
Description
FLEXEQUIP/VOSS Female Two Piece Hose Fitting with 60 Degree Cone and Slip Nut: These fittings are the most widely used female fitting in the UK and Ireland, designed for reliable performance in agricultural and standard hydraulic applications. Featuring a BSP thread with a 60 degree tapered cone, this fitting meets ISO 12151-6 (ISO 8434-6) standards, ensuring high efficiency in hydraulic systems by delivering leak-free connections and robust assembly reliability. Precision-engineered for perfect alignment between fittings and couplings, this fitting provides versatility, durability, and dependable performance built on decades of expertise.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 3/8 inch BSP
- Length:
- 55mm
- Type:
- DKR
- Angle:
- * Straight
- Cone Angle:
- 60 degrees
Technical
| Hose Bore | 3/8 inch |
|---|---|
| Thread (d2) | G 3/8 inch |
| DN Size | 10mm |
| Total Length (lg) | 55mm |
| Length (lh) | 25mm |
| Cut Off (lx) | 19mm |
| Bore Size (dx) | 7mm |
| Nut Size (SW) | 22mm |
| Angle | * Straight degrees |
| Cone Angle | 60 degrees |
| Weight | 0.053 kg |
