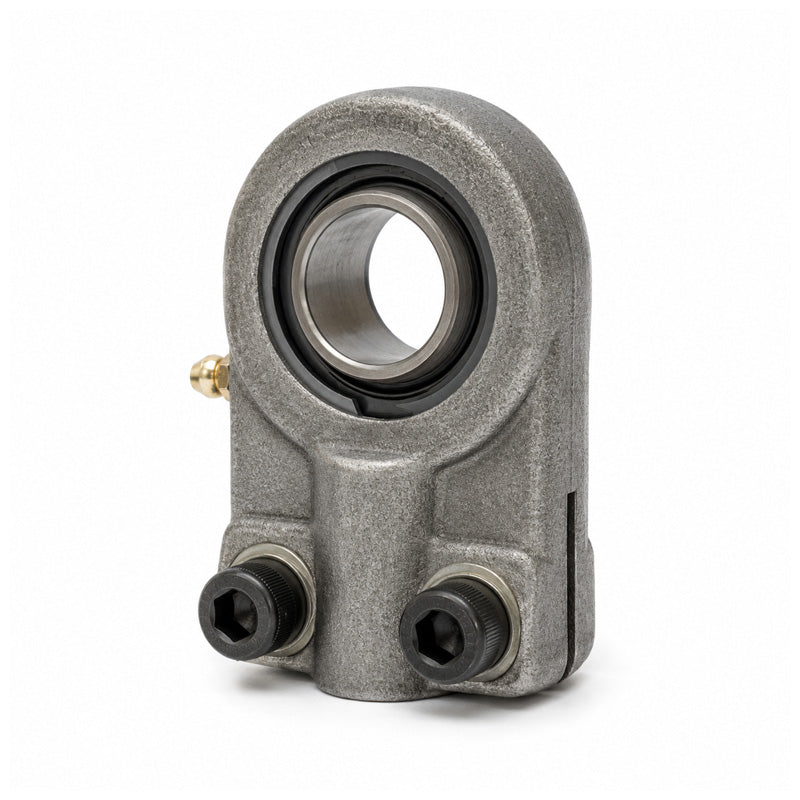

Durbal DGIHN-K80LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
Durbal DGIHN-K80LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M64x3 Thread
Regular price
€543,24
ex VAT
Regular price
Sale price
€543,24
ex VAT
Equivalent to: GIHNK80LO SIQG80ES
In stock
Price Break
10+
€483,48
19+
€456,32
29+
€450,89
39+
€445,46
49+
€440,02
74+
€434,59
99+
€407,43
199+
€402,00
249+
€396,57
499+
€391,13
999+
€380,27
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK80LO SIQG80ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M64x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 80mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 80mm |
| d1 | 91mm |
| d2 | 168mm |
| d4 | 90mm |
| d5 | 148mm |
| dk | 105mm |
| G (Thread) | M64x3mm |
| B | 80mm |
| C1 | 66mm |
| C2 | 48mm |
| l3 | 86mm |
| l4 | 270mm |
| l7 | 78mm |
| h1 | 180mm |
| tilt angle α | 4 deg |
| weight | 14.5kg |
| basic load rating dyn C | 320 kN |
| basic load rating stat Co | 556 kN |
| radial clearance CN | 8-142 µm |
