SKU: DGE25FW-2RS-DURB

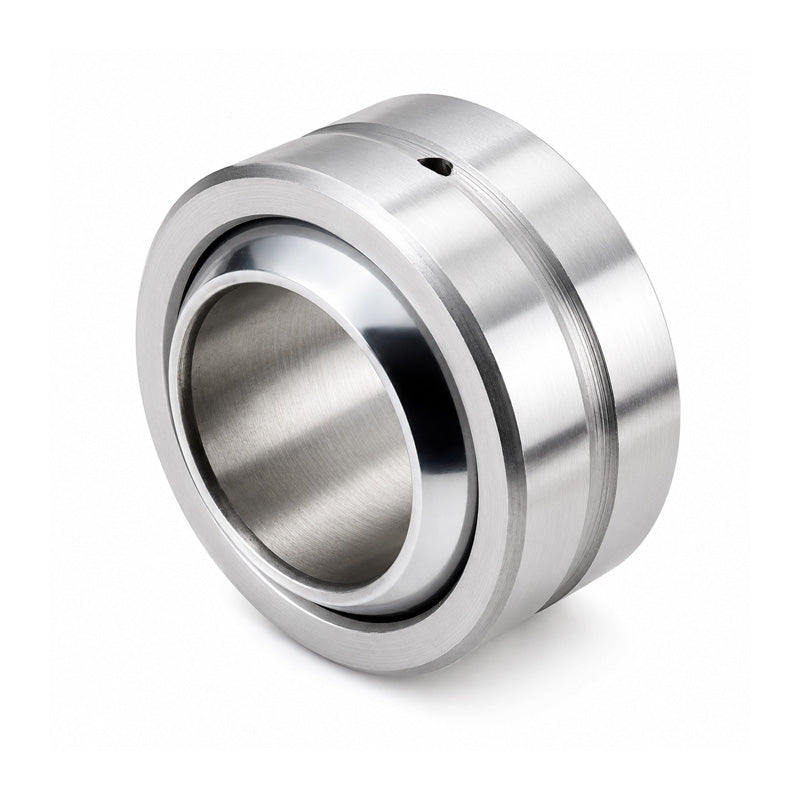

Durbal DGE25FW-2RS Maintenance Free Steel / PTFE Lined Spherical Plain Bearing with Seals 25x47x28mm - Allow 2-3 Days
Equivalent to: GE25FW2RS GEH25TXE2LS
In stock
Price Break
Description
DURBAL Radial-Spherical Plain Bearing with Seals - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished, chromium-plated steel joint ball with a heat-treated, single split steel outer ring bonded with PTFE - fabric and 2RS seals on both sides. Suitable for use with high unidirectional loads. Sliding combination: Steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.
Equivalent: GE25FW2RS GEH25TXE2LS
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 25mm
- Material:
- PTFE Lined
Technical
| d | 25mm |
|---|---|
| d1 | 28.5mm |
| D | 47mm |
| dk | 40.7mm |
| B | 28mm |
| C | 18mm |
| rs | 0.6mm |
| r1s | 0.6mm |
| tilt angle α | 17 deg |
| weight | 0.19kg |
| basic load rating dyn C | 65.5 kN |
| basic load rating stat Co | 166 kN |
| radial clearance CN | 0-50 µm |
