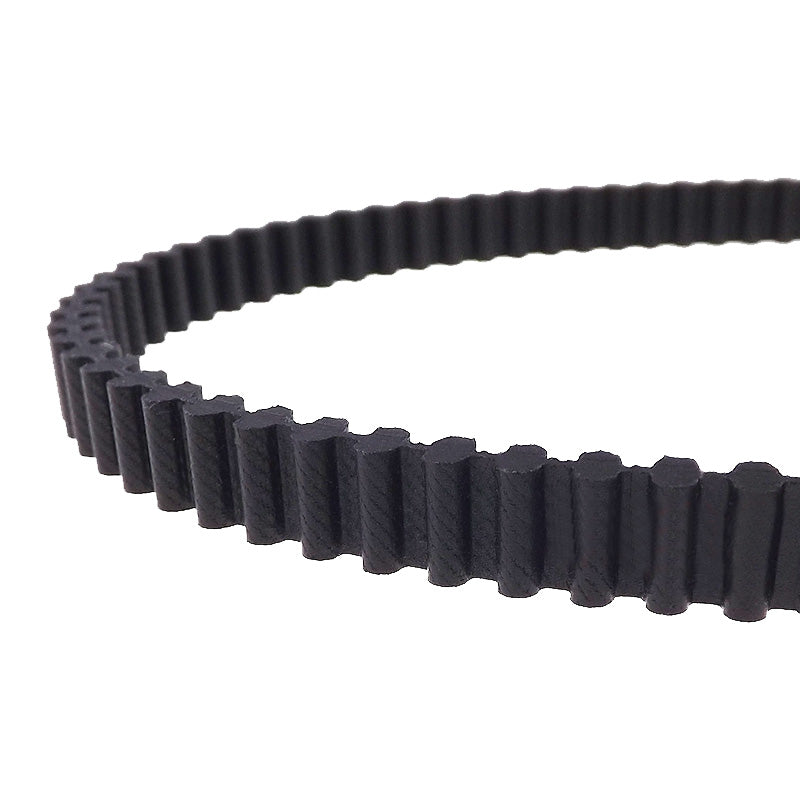

DD720-8M-50 Transflex Double-Sided Timing Belt 50mm Wide 8mm Pitch 90 Teeth

Double-Sided HTD Timing Belts 8mm Pitch Belt: Double-sided belts have teeth equally constructed on each side of the belt, which enables them to mesh with toothed pulleys on both the inside and outside. The construction of the belts is the same as standard Metric belts, except that the nylon facing is also on the backing teeth, enabling full torque transmission from each side of the belt.
Benefits: Reverse motion between internal and external pulleys
Require only one belt to drive a series of pulleys
Simplified design layouts and weight reduction.

Brand / Quality:

Transflex - High Quality

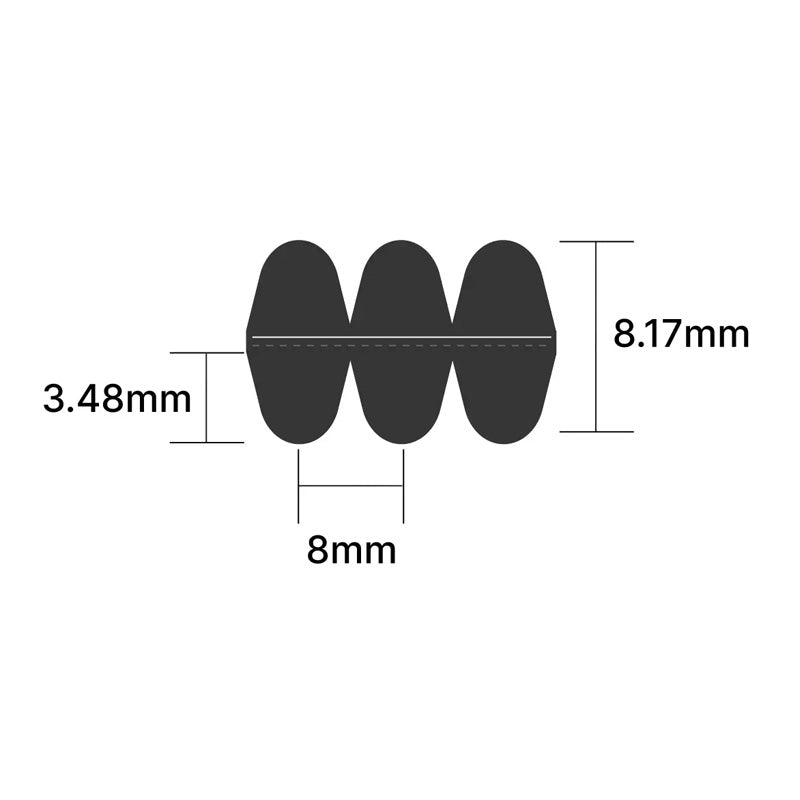

Belt Width Approx:

50mm

Belt Depth Approx:

8.2mm

Belt Length Approx:

720mm

Number of Teeth:

90
