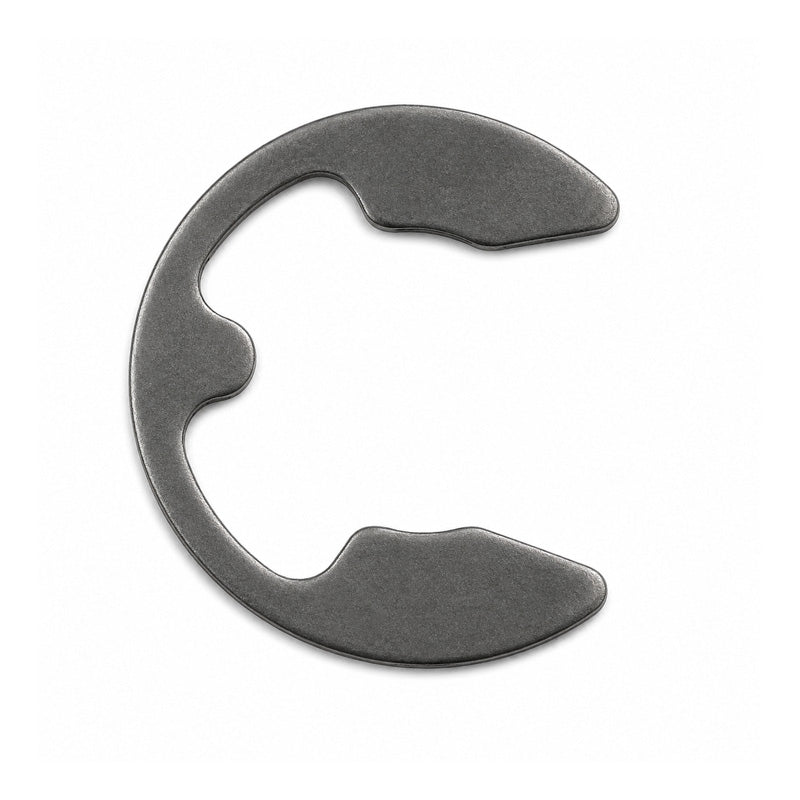

• Sprung Carbon Steel E-Clip for 15mm Groove Diameter
1 1

SKU: D1500-0150

Sprung Carbon Steel E-Clip for 15mm Groove Diameter

Sprung Carbon Steel E-Clip for 15mm Groove Diameter
€0,99 ex VAT
€0,99 ex VAT
Sale Sold out

Equivalent to: D1500-0150

In stock

Price Break
10+ €0,43
20+ €0,29
50+ €0,18
100+ €0,15
500+ €0,09
1000+ €0,08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

E-Clips: The most common form of radial fitted circlips for shafts with grooves, provides a retaining shoulder on a relatively small shaft diameter. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.
Note: The groove size is critical with this type of circlip, the shaft diameter can vary slightly. Please see technical tab for more information. The size of clip stated denotes the diameter of the groove into which it fits.
Benefits: Cost effective replacement, durable, removable.

Equivalent: D1500-0150
Brand / Quality:
Simply E-Clips - Economy Quality
Material:
Sprung Carbon Steel
Shaft Size:
20mm
Thickness:
1.5mm
Groove Diameter:
15mm
Technical
--- Clip Dimensions
Shaft Size (d1) 20mm
Shaft Range 16mm to 24mm
Thickness (s) 1.5mm
Thickness Tolerance ±0.03mm
Max Outisde Diameter (d4) 28.7mm
Shoulder Length (n) 3mm
a 12.61mm
a Tolerance ±0.070mm
Weight 3.37kg
--- Speeds and Load Ratings
Max Fling Off Speed 11000rpm
--- Groove Requirements
Groove Diameter (d2) 15mm
Groove Diameter Tolerance +0mm / -0.11mm
Groove Width (m) 1.55mm
Groove Depth (g) 2.2mm
