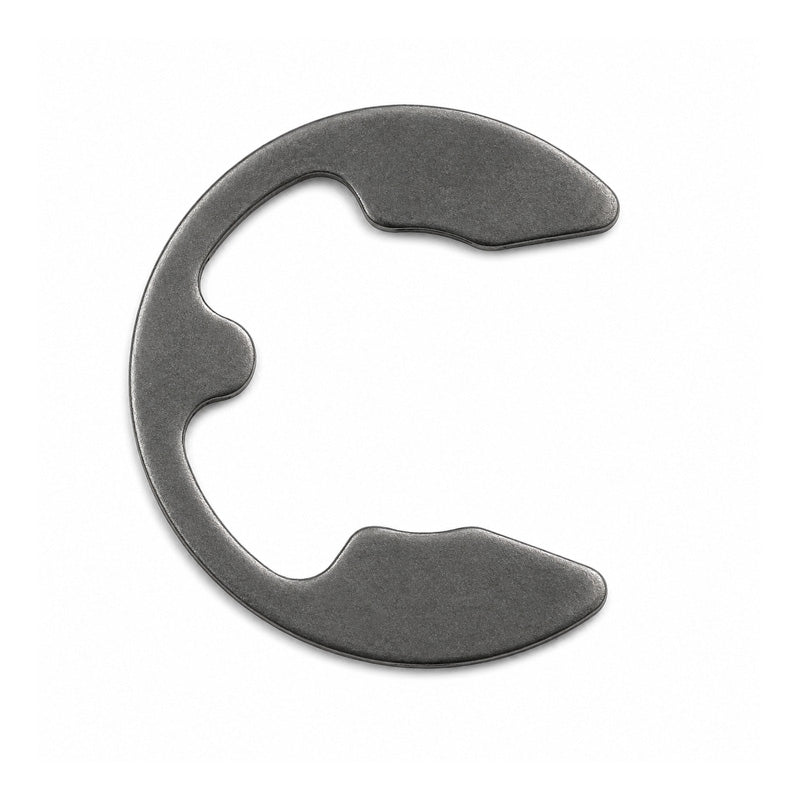

• Sprung Carbon Steel E-Clip for 4mm Groove Diameter
1 1

SKU: D1500-0040

Sprung Carbon Steel E-Clip for 4mm Groove Diameter

Sprung Carbon Steel E-Clip for 4mm Groove Diameter
€0,99 ex VAT
€0,99 ex VAT
Sale Sold out

Equivalent to: D1500-0040

In stock

Price Break
10+ €0,43
20+ €0,29
50+ €0,18
100+ €0,15
500+ €0,09
1000+ €0,08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

E-Clips: The most common form of radial fitted circlips for shafts with grooves, provides a retaining shoulder on a relatively small shaft diameter. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.
Note: The groove size is critical with this type of circlip, the shaft diameter can vary slightly. Please see technical tab for more information. The size of clip stated denotes the diameter of the groove into which it fits.
Benefits: Cost effective replacement, durable, removable.

Equivalent: D1500-0040
Brand / Quality:
Simply E-Clips - Economy Quality
Material:
Sprung Carbon Steel
Shaft Size:
5mm
Thickness:
0.7mm
Groove Diameter:
4mm
Technical
--- Clip Dimensions
Shaft Size (d1) 5mm
Shaft Range 5mm to 7mm
Thickness (s) 0.7mm
Thickness Tolerance ±0.02mm
Max Outisde Diameter (d4) 8.85mm
Shoulder Length (n) 1.2mm
a 3.34mm
a Tolerance ±0.048mm
Weight 0.158kg
--- Speeds and Load Ratings
Max Fling Off Speed 32000rpm
--- Groove Requirements
Groove Diameter (d2) 4mm
Groove Diameter Tolerance +0mm / -0.075mm
Groove Width (m) 0.74mm
Groove Depth (g) 1mm
