SKU: CSB.207

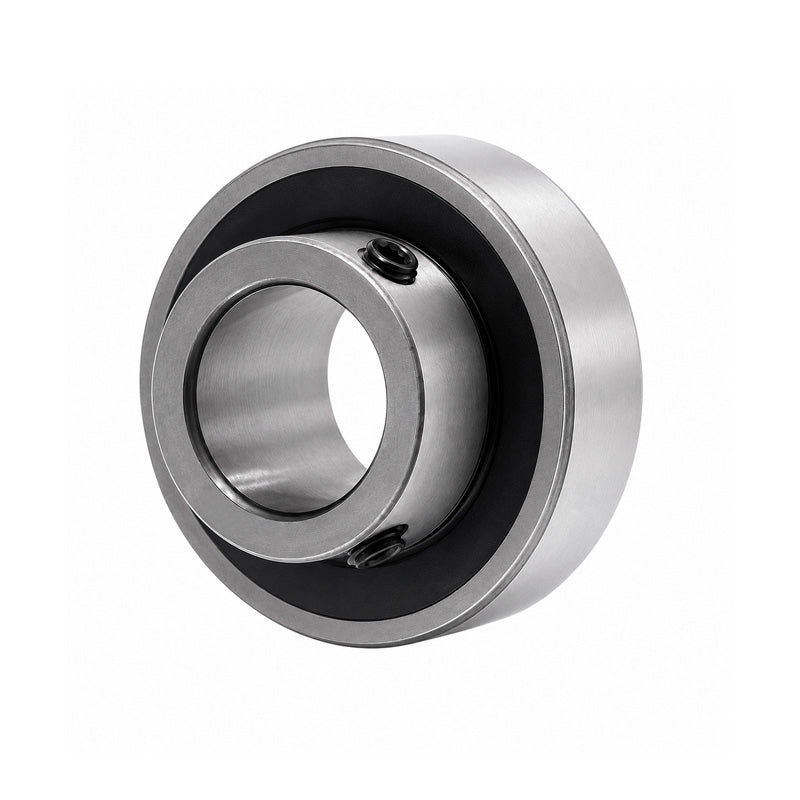

CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
CSB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
€15,73
ex VAT
Regular price
Sale price
€15,73
ex VAT
In stock
Price Break
10+
€14,00
19+
€13,21
29+
€13,06
39+
€12,90
49+
€12,74
74+
€12,58
99+
€11,80
199+
€11,64
249+
€11,48
499+
€11,33
999+
€11,01
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
