SKU: CSB.205

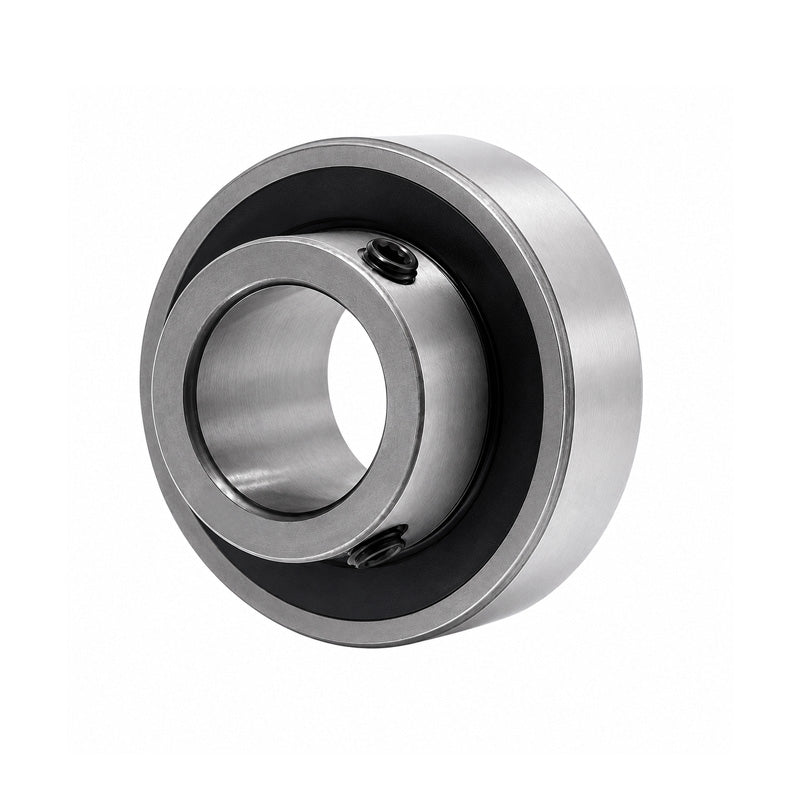

CSB205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
CSB205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
Regular price
€8,11
ex VAT
Regular price
Sale price
€8,11
ex VAT
In stock
Price Break
10+
€7,22
19+
€6,81
29+
€6,73
39+
€6,65
49+
€6,57
74+
€6,49
99+
€6,08
199+
€6,00
249+
€5,92
499+
€5,84
999+
€5,68
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
