SKU: CSB.201-8

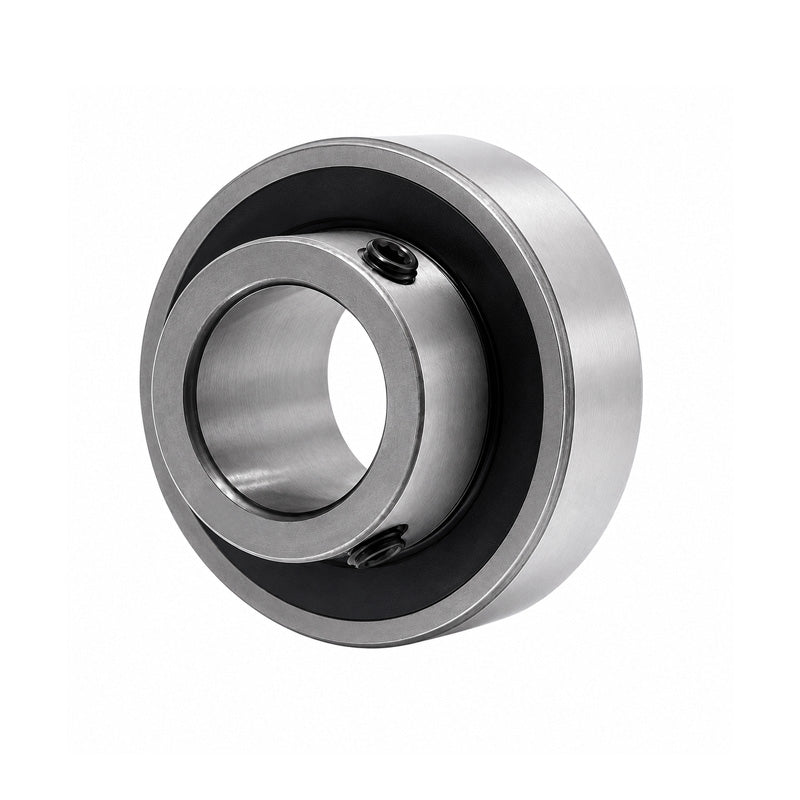

CSB201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia - Allow 2-3 Days
CSB201-8 Imperial Bearing Insert with 1/2 inch Bore 40mm Outside Dia - Allow 2-3 Days
Regular price
€11,63
ex VAT
Regular price
Sale price
€11,63
ex VAT
In stock
Price Break
3+
€9,85
4+
€9,45
9+
€9,25
19+
€8,96
49+
€8,76
99+
€8,26
499+
€6,97
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 40mm
- Style:
- CSB
Technical
Technical
| d | 1/2 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
