SKU: CSA.204-12

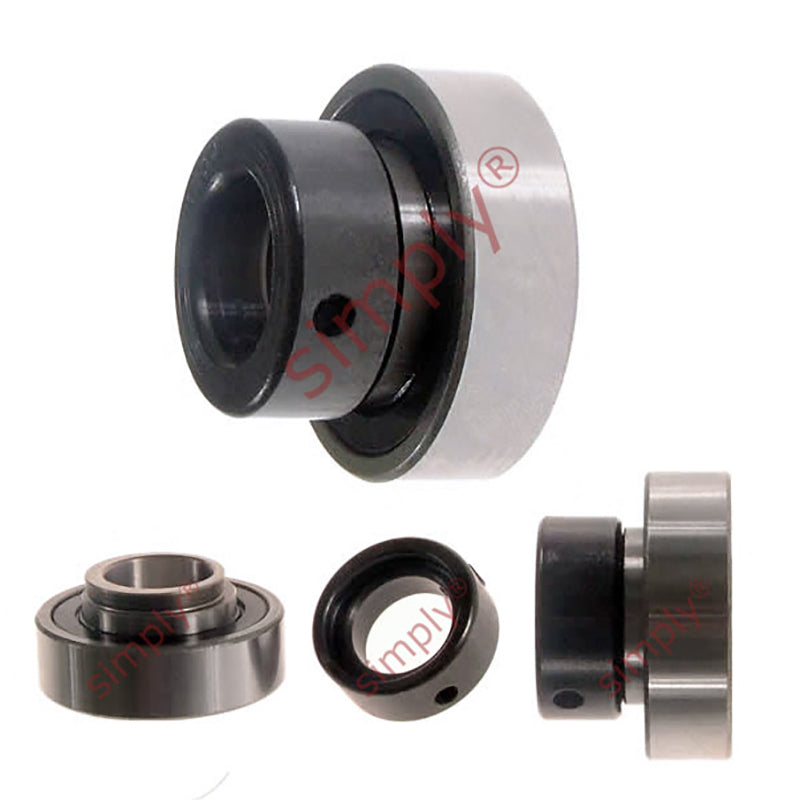

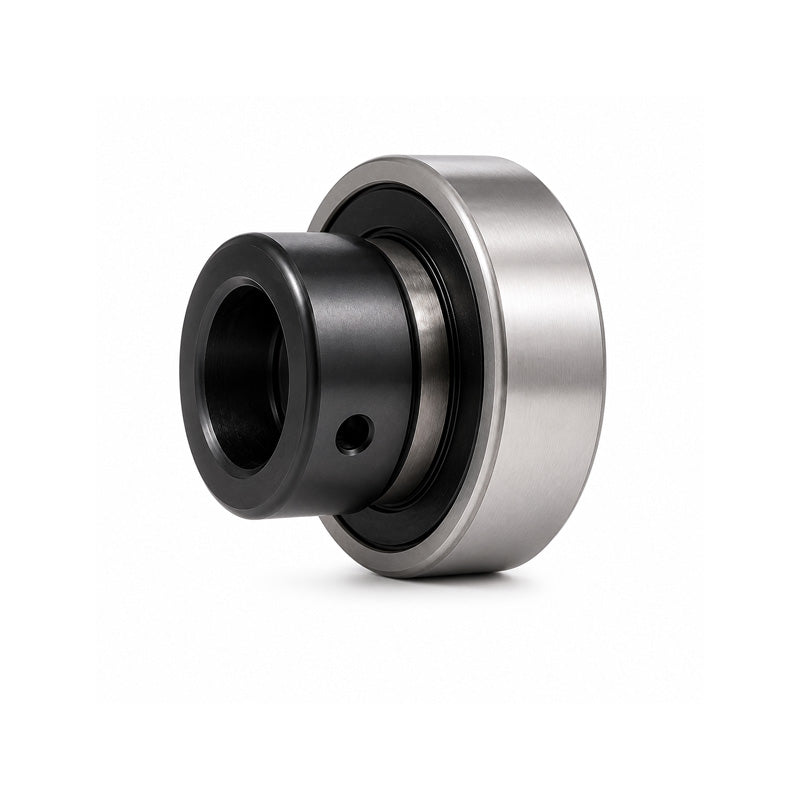

CSA204-12 Imperial Bearing Insert with Locking Collar 3/4 inch Bore 47mm Outside Dia
CSA204-12 Imperial Bearing Insert with Locking Collar 3/4 inch Bore 47mm Outside Dia
Regular price
€9,91
ex VAT
Regular price
Sale price
€9,91
ex VAT
In stock
Price Break
3+
€7,55
4+
€7,12
9+
€7,04
19+
€6,95
49+
€6,87
99+
€6,78
499+
€6,36
999+
€6,28
1999+
€6,19
2999+
€6,11
4999+
€5,94
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- CSA
Technical
Technical
| d | 3/4 inch |
|---|---|
| Be | 14mm |
| D | 47mm |
| z | 21.5mm |
| n | 7.0mm |
| m | 14.5mm |
| Bi | 31mm |
| k | 33.3mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
