SKU: CRB25/72-INA

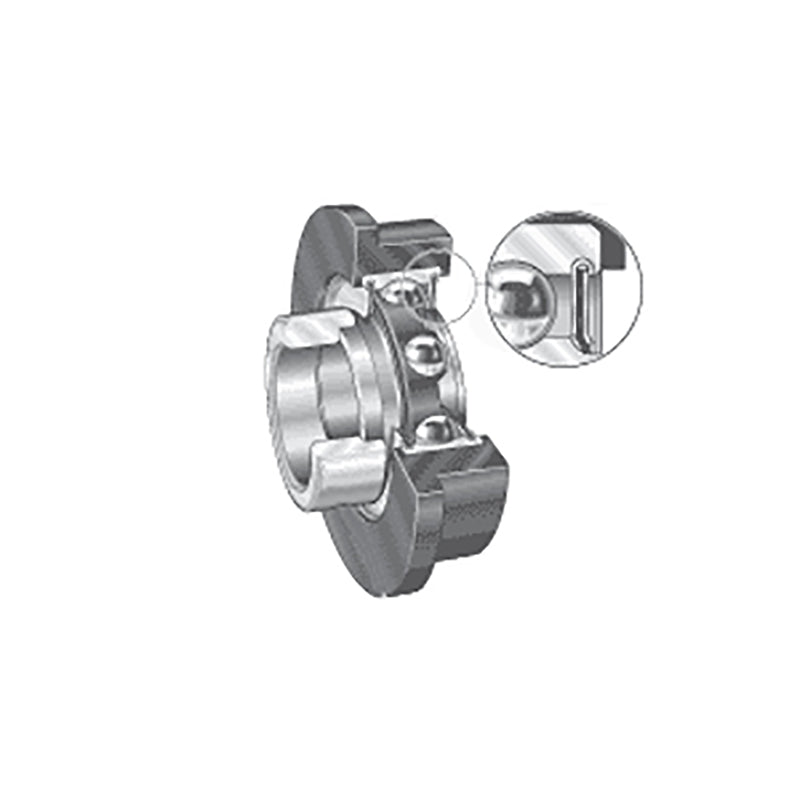

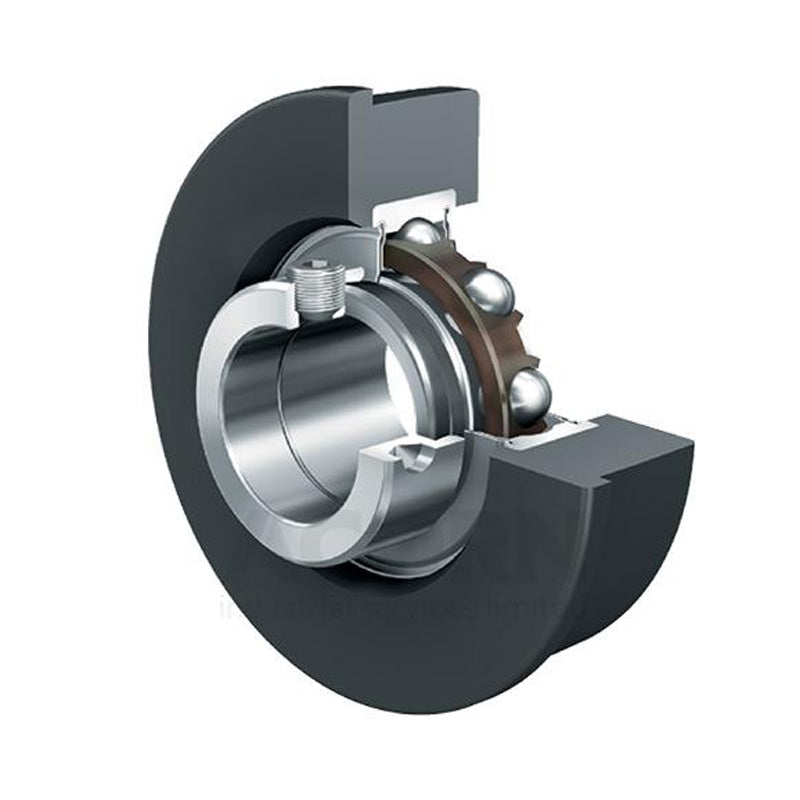

INA CRB25/72XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x73x36mm
INA CRB25/72XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x73x36mm
Regular price
€42,41
ex VAT
Regular price
Sale price
€42,41
ex VAT
In stock
Price Break
3+
€32,30
5+
€30,48
10+
€30,12
15+
€29,76
20+
€29,39
30+
€29,03
40+
€27,22
50+
€26,85
60+
€26,49
75+
€26,13
100+
€25,40
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 73mm
- Width:
- 36mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 73mm |
| B2 | 36mm |
| B1 | 31mm |
| C | 25mm |
| C1 | 5mm |
| D1 | 80mm |
| D2 | 46mm |
| d3 max | 37.5mm |
| S2 | 12.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1000 N |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Designation of rubber interliner | CR52/72 |
| Designation of bearing | RAE25-NPP |
| Weight | 0.32 kg |
