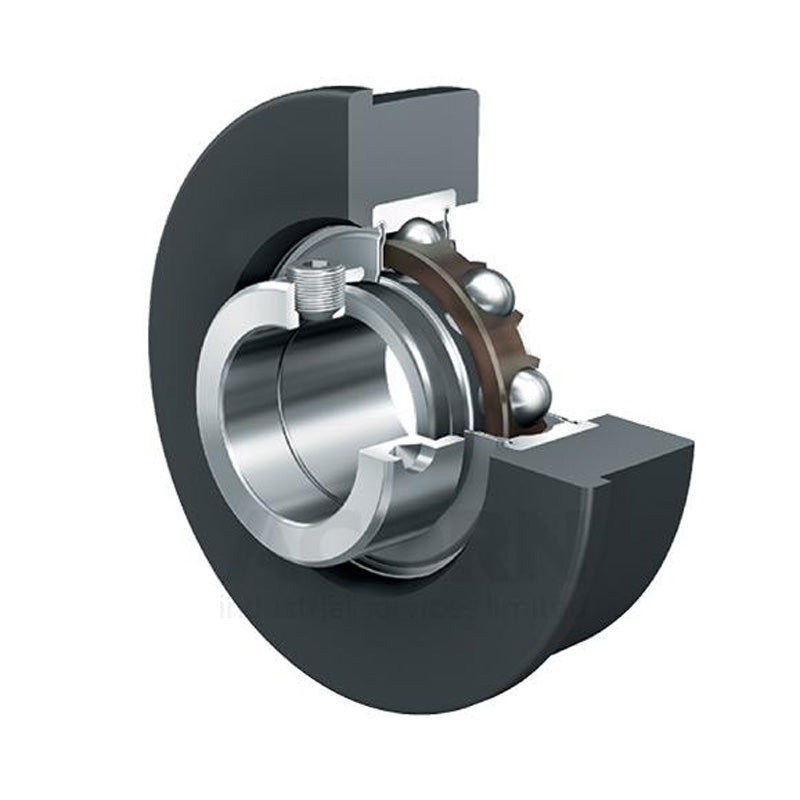

INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm
INA CRB25/70XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x71.5x36mm
Regular price
€41,87
ex VAT
Regular price
Sale price
€41,87
ex VAT
In stock
Price Break
3+
€31,89
5+
€30,10
10+
€29,74
15+
€29,38
20+
€29,02
30+
€28,66
40+
€26,87
50+
€26,51
60+
€26,16
75+
€25,80
100+
€25,08
Description
Description
|

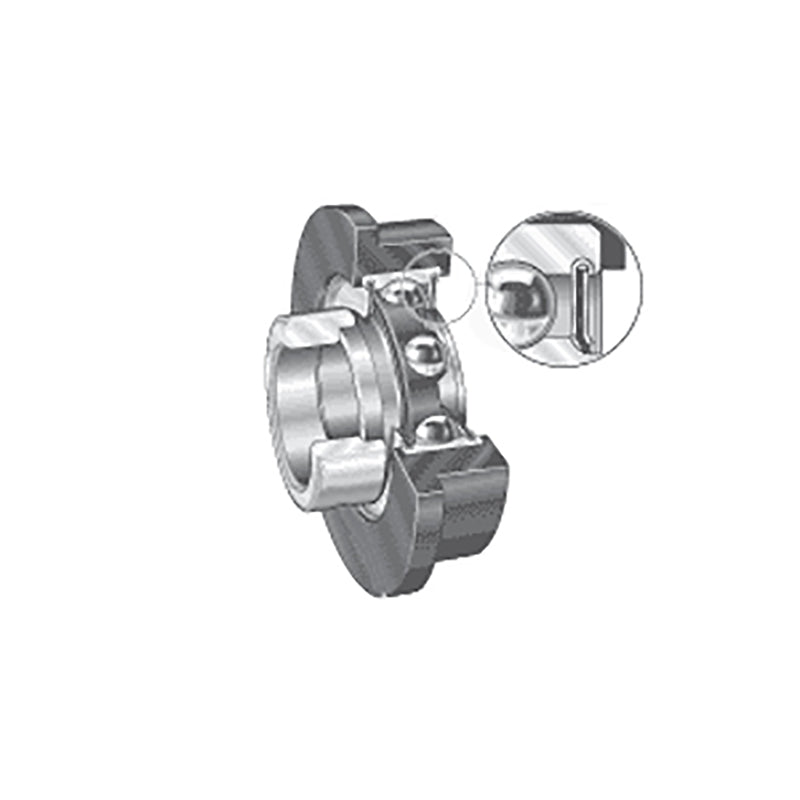

INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 71.5mm
- Width:
- 36mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 71.5mm |
| B2 | 36mm |
| B1 | 31mm |
| C | 25mm |
| C1 | 5mm |
| D1 | 76mm |
| D2 | 46mm |
| d3 max | 37.5mm |
| S2 | 12.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1000 N |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Designation of rubber interliner | CR52/70 |
| Designation of bearing | RAE25-NPP |
| Weight | 0.32 kg |
