SKU: CRB20/76-INA

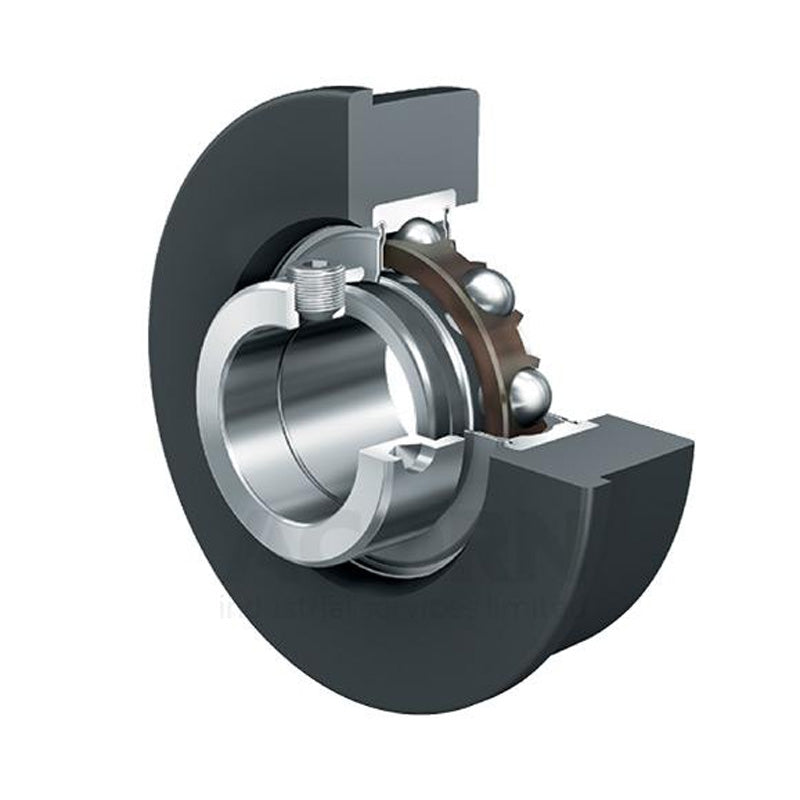

INA CRB20/76XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x77.5x36mm
INA CRB20/76XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x77.5x36mm
Regular price
€34,50
ex VAT
Regular price
Sale price
€34,50
ex VAT
In stock
Price Break
3+
€26,27
5+
€24,80
10+
€24,50
15+
€24,21
20+
€23,91
30+
€23,62
40+
€22,14
50+
€21,84
60+
€21,55
75+
€21,25
100+
€20,66
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 77.5mm
- Width:
- 36mm
Technical
Technical

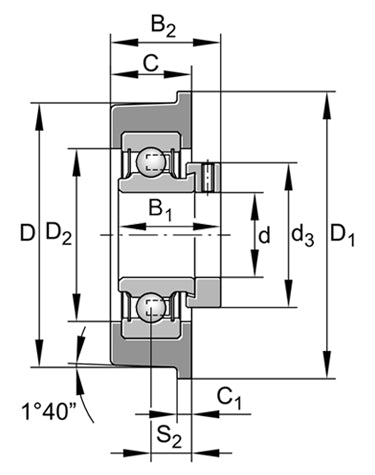

| d | 20mm |
|---|---|
| D | 77.5mm |
| B2 | 36mm |
| B1 | 31mm |
| C | 25.4mm |
| C1 | 5mm |
| D1 | 80mm |
| D2 | 40mm |
| d3 max | 33mm |
| S2 | 12.5mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 750 N |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Designation of rubber interliner | CR47/76 |
| Designation of bearing | RAE20-NPP |
| Weight | 0.3 kg |
