SKU: CM-UCFL215D1-NTN

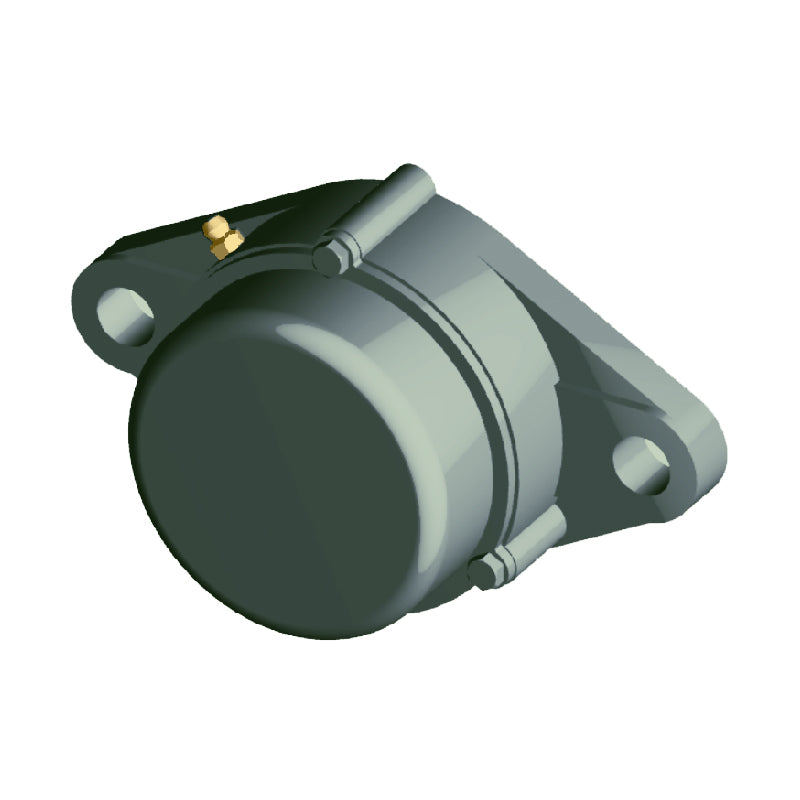

NTN CM-UCFL215D1 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL215D1 Metric Two Bolt Oval Cast Iron Flange Housing with 75mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€259,04
ex VAT
Regular price
Sale price
€259,04
ex VAT
In stock
Price Break
3+
€219,45
4+
€210,59
9+
€206,15
19+
€199,50
49+
€195,07
99+
€183,99
499+
€155,17
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| H | 275mm |
| J | 225mm |
| A<sub>2</sub> | 34mm |
| A<sub>1</sub> | 22mm |
| A | 56mm |
| N | 23mm |
| L | 165mm |
| B | 77.8mm |
| S | 33.3mm |
| t<sub>2</sub> | 17mm |
| A<sub>5</sub> | 102mm |
| L<sub>1</sub> | 169mm |
| L<sub>2</sub> | 82mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 73.5 kN |
| Static load C<sub>0r</sub> | 49.5 kN |
| Fatigue load limit C<sub>u</sub> | 3.8 kN |
| --- | Unit information |
| Mass | 7.1 kg |
