SKU: CM-UCFL210D1-NTN

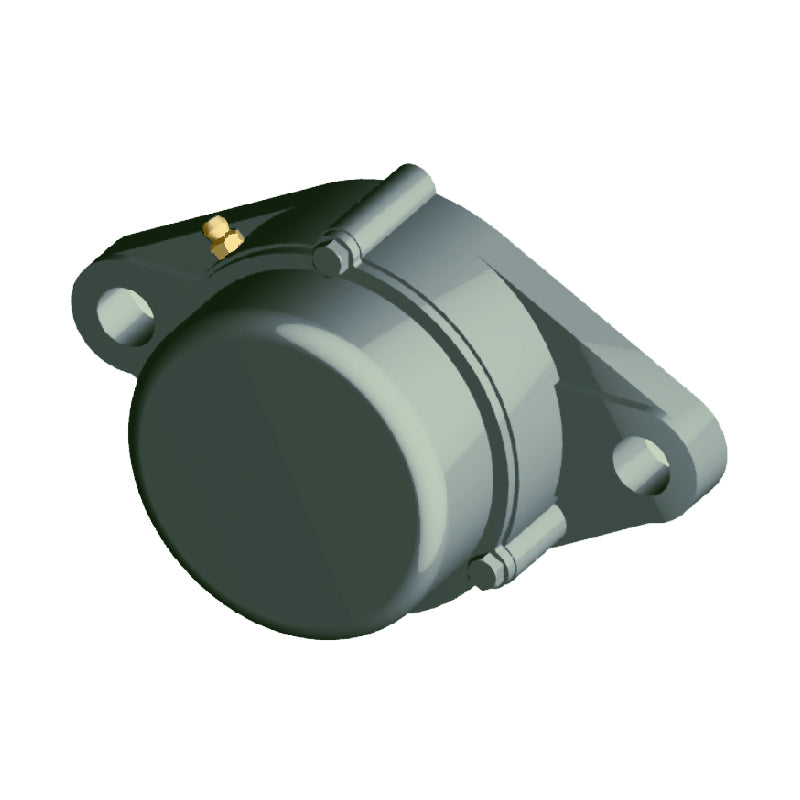

NTN CM-UCFL210D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL210D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€90,64
ex VAT
Regular price
Sale price
€90,64
ex VAT
In stock
Price Break
3+
€76,78
4+
€73,68
9+
€72,13
19+
€69,80
49+
€68,25
99+
€64,37
499+
€54,29
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 197mm |
| J | 157mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 19mm |
| L | 115mm |
| B | 51.6mm |
| S | 19mm |
| t<sub>2</sub> | 12mm |
| A<sub>5</sub> | 72mm |
| L<sub>1</sub> | 120mm |
| L<sub>2</sub> | 58mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 2.7 kg |
