SKU: CM-UCFL208D1-NTN

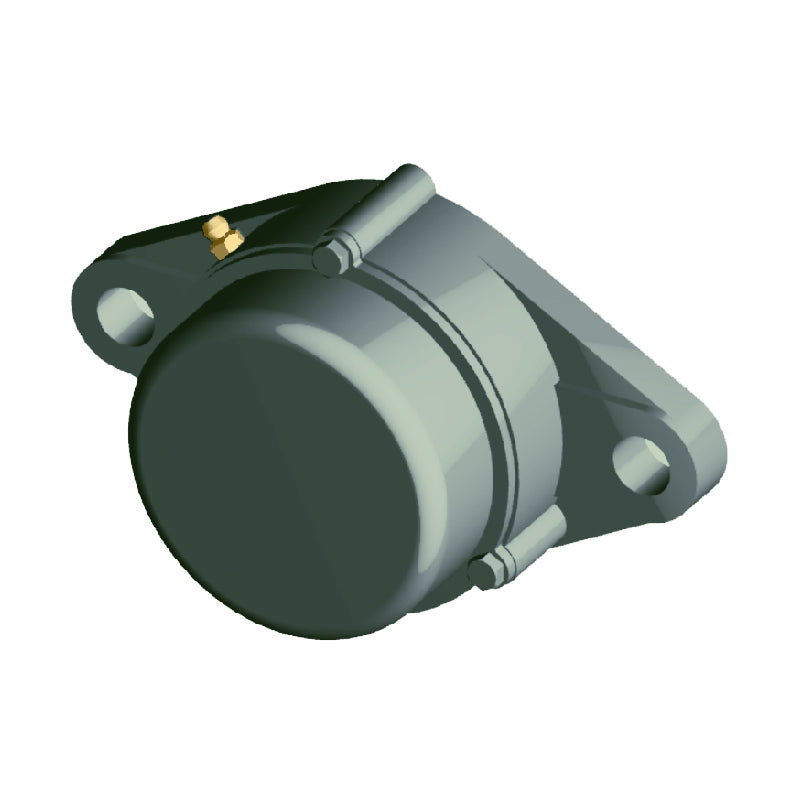

NTN CM-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€77,63
ex VAT
Regular price
Sale price
€77,63
ex VAT
In stock
Price Break
3+
€65,77
4+
€63,11
9+
€61,78
19+
€59,79
49+
€58,46
99+
€55,14
499+
€46,50
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 175mm |
| J | 144mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| L | 100mm |
| B | 49.2mm |
| S | 19mm |
| t<sub>2</sub> | 9mm |
| A<sub>5</sub> | 66mm |
| L<sub>1</sub> | 106mm |
| L<sub>2</sub> | 50mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 1.9 kg |
