SKU: CM-UCF218D1-NTN

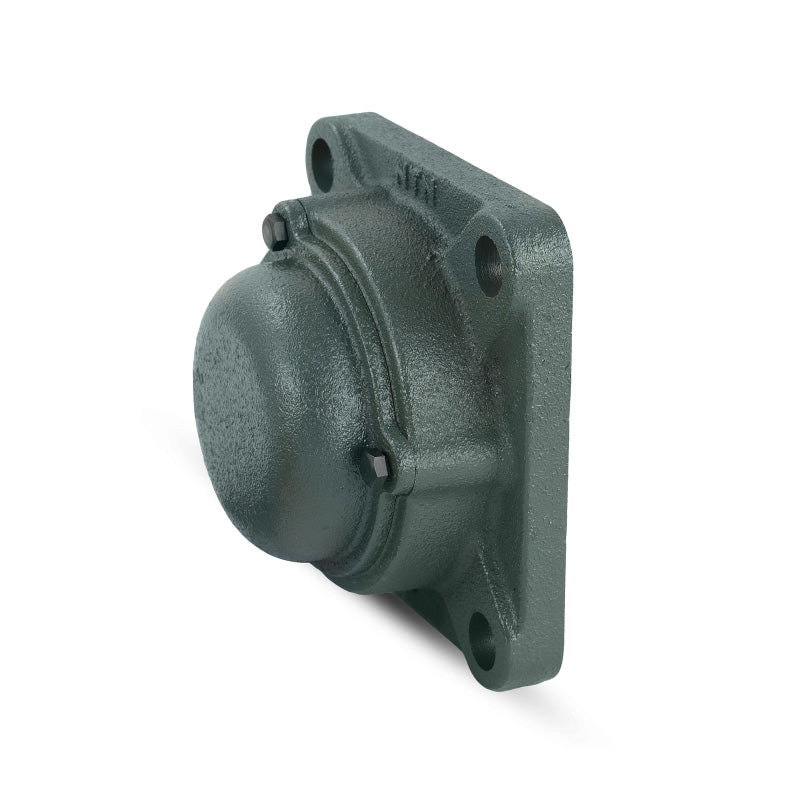

NTN CM-UCF218D1 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN CM-UCF218D1 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Regular price
€452,95
ex VAT
Regular price
Sale price
€452,95
ex VAT
In stock
Price Break
3+
€383,72
4+
€368,22
9+
€360,47
19+
€348,84
49+
€341,09
99+
€321,71
499+
€271,32
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCF
- Bolt Hole Centres:
- 187mm
Technical
Technical

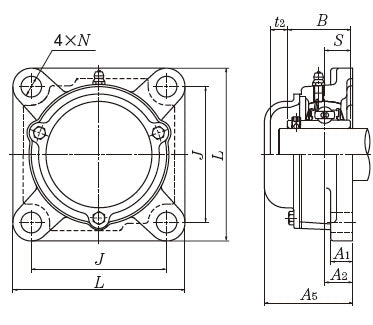

| --- | Dimensions |
|---|---|
| Shaft diameter | 90mm |
| L | 235mm |
| J | 187mm |
| A<sub>2</sub> | 40mm |
| A<sub>1</sub> | 24mm |
| A | 68mm |
| N | 23mm |
| B | 96mm |
| S | 39.7mm |
| t<sub>2</sub> | 19mm |
| A<sub>5</sub> | 122mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 106 kN |
| Static load C<sub>0r</sub> | 71.5 kN |
| Fatigue load limit C<sub>u</sub> | 5 kN |
| --- | Unit information |
| Mass | 13 kg |
